Vehicle Exploded View - DERBI BOULEVARD 150 Boulevard 150 4T E3 2010 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

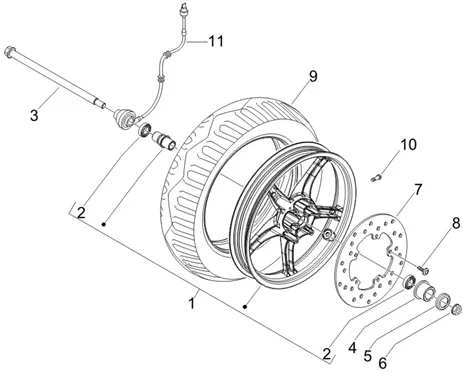

Suspensions - roues : 04.11 ROUE AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1139/Boulevard_150_4T_E3_2010_(EMEA)_04.11.png)
1 |
RIM/FRONT WHEEL COMPLETE OEM PIAGGIO 50 FLY 2010 > 2011-646686T More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/1/0/2/img/68102.jpg)
2 |
BEARING (15X35X11) DE FRONT WHEEL OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-649910 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/9/3/img/72993.jpg)
3 |
FRONT WHEEL AXLE "PIAGGIO GENUINE PART" 50-125 FLY 2006> -CM076902- More informationQuantity required : 1 |
||||||
|
4 |
564527-SPACER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/5/7/img/67057.jpg)
5 |
WASHER PROTECTOR POUSSIERE FRONT WHEEL OEM PIAGGIO 50 FLY, RUNNER, STAKER, TYPHOON 2016 <-5644756 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/3/img/66103.jpg)
6 |
NUT (M12) WHEEL SPINDLE OEM PIAGGIO COMMON A LA RANGE-271740 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/4/0/img/67040_20260413172022.jpg)
7 |
BRAKE DISC SCOOT OEM PIAGGIO 50-125 VESPA LX 2005 >, VESPA S 2007 >, PRIMAVERA 2013 >, FLY 2005 >, 50 ZIP SP 2006 >, 125 VESPA PX 2001 > FRONT-56395R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/3/6/img/68436.jpg)
8 |
SCREW BTR HEAD BOMBEE (6X20) WITH BRAKE NET THREAD OEM PIAGGIO COMMON A LA RANGE-667152 More informationQuantity required : 5 |
||||||
|
9 |
598277-TYRE 120/70-12 SAVA MC20 More informationQuantity required : 1 |
||||||
|
9 |
601462 - PNEU PIRELLI 120/70-12 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/4/img/66094.jpg)
10 |
VALVE TUBELESS OEM PIAGGIO COMMON A LA RANGE-270991 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/0/6/img/67006.jpg)
11 |
ENTRAINEUR DE INSTRUMENT CLUSTER OEM PIAGGIO 50-125 FLY, LIBERTY, 125-250-300-400-500 BEVERLY, HEXAGON 12 POUCES/GILERA 50-125 RUNNER-1C005023 More informationQuantity required : 1 |
