Vehicle Exploded View - DERBI BOULEVARD 150 Boulevard 150 4T E3 2010 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

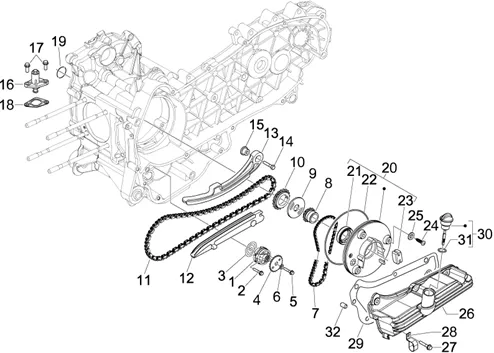

Moteur : 01.18 POMPE À HUILE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1139/Boulevard_150_4T_E3_2010_(EMEA)_01.18.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/4/9/img/68849.jpg)
1 |
OIL PUMP OEM PIAGGIO 125-250-300 MP3, BEVERLY, X7, VESPA GTS, 125-250 X8, X-EVO, X9, 125-300 YOURBAN, 125 FLY, LIBERTY, VESPA LX/GILERA NEXUS/APRILIA ATLANTIC, SCARABEO-82948R More informationQuantity required : 1 |
|||||||||
2 |
829593-BOLT More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/4/7/img/69547.jpg)
3 |
GASKET CASING OIL PUMP OEM PIAGGIO 125-250-300 COMMON A LA RANGE-847929 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/8/2/img/66182.jpg)
4 |
SPROCKET OIL PUMP OEM PIAGGIO 50-125-300 COMMON A LA RANGE-287913 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/0/6/img/72706.jpg)
5 |
SCREW FLANGE TH (6X14) OEM PIAGGIO COMMON A LA RANGE-B016426 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/0/1/img/66501.jpg)
6 |
WASHER SPRING (6. 4X20X2) OEM PIAGGIO COMMON A LA RANGE-436695 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/0/5/img/68605.jpg)
7 |
CHAIN OF PUMP A OIL OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-82649R More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/0/3/img/68703.jpg)
8 |
SPROCKET ENTRAINEMENT OF PUMP A OIL OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-82783R More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/5/1/img/66651.jpg)
9 |
WASHER ENTRE PIGNONS DE VILEBREQUIN OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-483918 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/0/0/img/68700_20251124134345_20251124143304.JPG)
10 |
SPROCKET DE CHAIN DE TIMING OEM PIAGGIO COMMON A LA RANGE-82782R More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/9/8/img/68598.jpg)
11 |
CHAIN DE TIMING OEM PIAGGIO 125 FLY, LIBERTY, X8 STREET, VESPA LX, VESPA-S/APRILIA 125 SPORT-CITY, MOJITO-82643R More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/4/4/img/68744.jpg)
12 |
PATIN DE CHAIN DE TIMING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125 CC-828308 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/5/2/img/69152.jpg)
13 |
PATIN/TENDEUR REGLABLE CHAIN DE TIMING OEM PIAGGIO 125 MP3 2007 >, BEVERLY 2005 >, X8 2004 >, X9 2003 >, X10 2012 >, X-EVO 2007 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 >, RUNNER 4T 2005-840510 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/0/img/72720.jpg)
14 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/9/3/img/66693.jpg)
15 |
SPACER- -485868 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/4/0/7/9/img/204079.jpg)
16 |
TENDEUR DE CHAIN DE TIMING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125 A 500 CC/MOTOS APRILIA-82650R More informationQuantity required : 1 |
|||||||||
|
16 |
TENDEUR DE CHAIN DE TIMING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125 A 500 CC/MOTOS APRILIA-82650R More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/3/img/72723.jpg)
17 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777 More informationQuantity required : 2 |
|||||||||
|
17 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/4/6/img/69546.jpg)
18 |
GASKET OF TENDEUR CHAIN DE TIMING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-847928 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/7/3/img/68573.jpg)
19 |
O RING OF SPROCKET OF PUMP A OIL OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-825952 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/6/6/img/69466.jpg)
20 |
COVER DE TIMING (GASKET OF VILEBREQUIN INCLU) OEM PIAGGIO 125-250-300 MP3, BEVERLY, VESPA GTS, X7, 125-250 X9, X8, X-EVO/GILERA 125-250-300 NEXUS/APRILIA 125-250-300 ATLANTIQUE-847116 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/4/0/img/68540.jpg)
21 |
OIL SEAL (24X35X7) VILEBREQUIN COTE VARIATOR OEM PIAGGIO 125 MP3 2007 >, BEVERLY 2005 >, X8 2004 >, X9 2003 >, X10 2012 >, X-EVO 2007 >, VESPA GTS 2007 >/NEXUS 2007 >, RUNNER 4T 2005 >-82538R More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/5/5/img/68555.jpg)
22 |
GASKET ETANCHEITE OIL PUMP OEM PIAGGIO 125 COMMON A LA RANGE 2012 <-825620 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/4/7/img/66447.JPG)
23 |
BUFFER DE CHAIN OF PUMP A OIL PIAGGIO COMMON A LA RANGE-434345 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/8/3/img/65383.jpg)
24 |
SCREW CRUCIFORME (5X12) OEM PIAGGIO COMMON A TOUTE LA RANGE-015585 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/6/6/img/66766.jpg)
25 |
487937 - RONDELLE More informationQuantity required : 3 |
|||||||||
|
26 |
CASING REMPLISSAGE D'HUILE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125 CC-843761 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/5/img/72725.jpg)
27 |
SCREW FLANGE TH (6X30) OEM PIAGGIO COMMON A TOUTE LA RANGE-B016792 More informationQuantity required : 7 |
|||||||||
|
28 |
487824 - COLLIER More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/9/6/img/68896.jpg)
29 |
GASKET OF CASING OIL OEM PIAGGIO 125 MP3 2007 >, BEVERLY 2005 >, X8 2004 >, X9 2003 >, X10 2012 >, X-EVO 2007 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 >, RUNNER 4T 2005 >/APRILIA 125 ATLANTIC-830128 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/7/9/img/69279.jpg)
30 |
JAUGE OIL ENGINE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-843364 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/2/8/0/img/158280.jpg)
31 |
O-RING OEM PIAGGIO COMMON A LA RANGE-1A009397 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/4/2/img/66142.jpg)
32 |
PION DE CENTRAGE (7, 5X12) OEM PIAGGIO COMMON A LA RANGE-277916 More informationQuantity required : 3 |
|||||||||
