Vehicle Exploded View - PIAGGIO BEVERLY 250 ie E3 2006-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

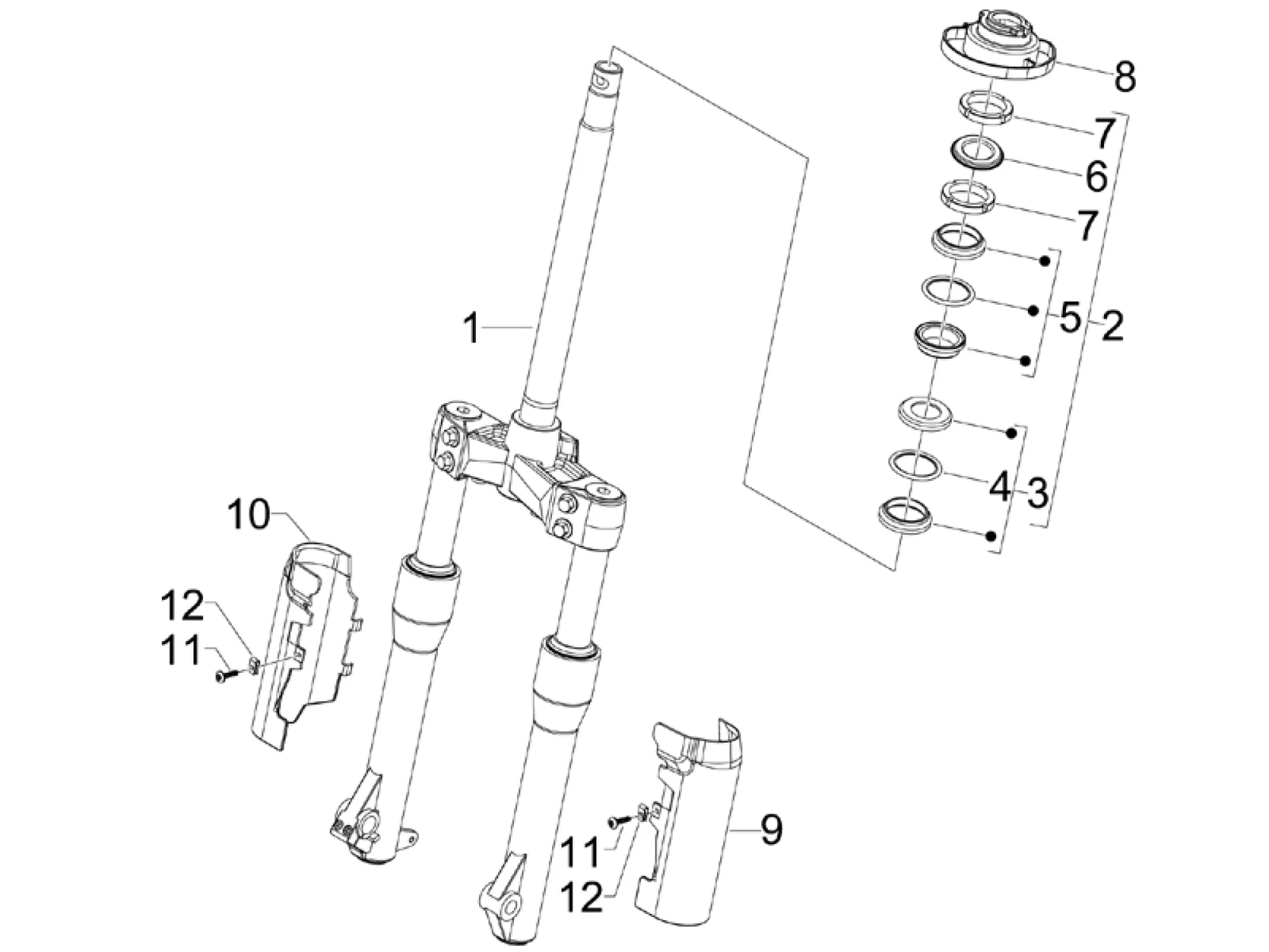

Suspensions - roues : 04.02 FOURCHE/TUBE DIRECTION - ENSEMBLE BUTÉE DIR.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/43/Beverly_250_ie_E3_2006-2008_04.02.PNG)
1 |
FRONT FORK "PIAGGIO GENUINE PART" 125-250-300 BEVERLY 2005> -56269R- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/5/9/img/67459.jpg)
2 |
6008725 - GROUPE CUVETTES More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/0/1/8/img/87018.jpg)
3 |
STEERING COLUMN BEARING (UPPER) "PIAGGIO GENUINE PART" 125 FLY, VESPA GTS, VESPA LXV, PRIMAVERA , VESPA S -65007545 More informationQuantity required : 1 |
|||||||||
|
3 |
STEERING COLUMN BEARING (UPPER) "PIAGGIO GENUINE PART" 125 FLY, VESPA GTS, VESPA LXV, PRIMAVERA , VESPA S -65007545 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/8/8/9/img/152889.jpg)
4 |
HEADSET LOWER BEARING "PIAGGIO GENUINE PART" 50 TYPHOON 2018>/APRILIA 50 SR MOTARD 2018> -564260 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/5/5/img/67455.jpg)
5 |
UPPER HEADSET "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125 A 500 -600750 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/6/4/img/67264.jpg)
6 |
582787 - RONDELLE. More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/3/9/img/65339.jpg)
7 |
NUT - FOR STEERING FASTENING "PIAGGIO GENUINE PART" FOR ALL MAXISCOOTERS -0111094 More informationQuantity required : 2 |
|||||||||
|
8 |
COLLIER PROTECTION |
|||||||||
|
9 |
649615 - PROTECTION GAUCHE FOURCHE More informationQuantity required : 1 |
|||||||||
|
10 |
649614 - PROTECTION DR FOURCHE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/5/img/66035.jpg)
11 |
SCREW - 4,2X13 FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE PIAGGIO -259349 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
12 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410 More informationQuantity required : 2 |
|||||||||
