Vehicle Exploded View - PIAGGIO BEVERLY 250 ie E3 2006-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

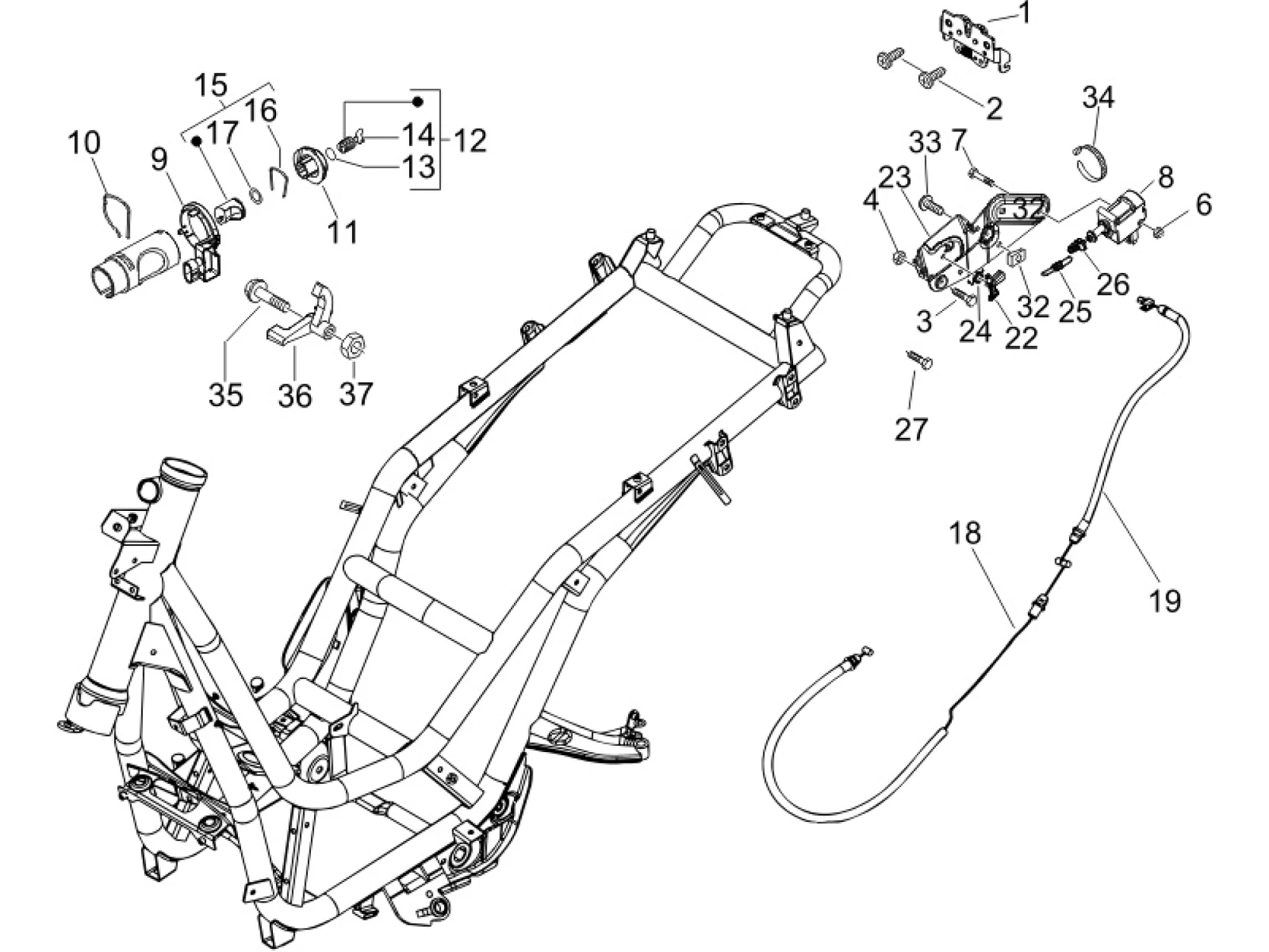

Châssis - parties plastiques - carrosseries : 02.46 SERRURES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/43/Beverly_250_ie_E3_2006-2008_02.46.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/4/3/img/72943.jpg)
1 |
SADDLE LOCK "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -CM023704 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/4/img/66034.jpg)
2 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259348 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/1/4/img/66314.jpg)
3 |
299972 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/6/2/img/67162.jpg)
4 |
577620 - ECROU More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/9/3/img/67293.jpg)
7 |
584121 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/0/7/0/img/178070.jpg)
8 |
1D002276R - SADDLE ACTUATOR More informationQuantity required : 1 |
||||||
|
8 |
1D002276R - SADDLE ACTUATOR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/7/9/0/img/67790.jpg)
9 |
ANTENNA FOR CDI UNIT"PIAGGIO GENUINE PART" COMMON TO ALL THE MAXISCOOTER RANGE -638534 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/8/img/66008.jpg)
10 |
KEY SWITCH SPRING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -253937 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/4/img/66304.jpg)
11 |
LOCK BODY "PIAGGIO GENUINE PART" COMMON TO ALL MAXISCOOTERS -1B002607 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/9/7/3/img/80973.jpg)
12 |
LOCK CYLINDER SET "PIAGGIO GENUINE PART" 125 LIBERTY, FLY, BEVERLY -576825 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/8/img/66308.jpg)
13 |
LOCK GASKET RING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -298731 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/6/8/4/img/80684.jpg)
14 |
KEYBLANK "PIAGGIO GENUINE PART" 125 X8, X9, X7, X-EVO, BEVERLY, FLY, LIBERTY -575810 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/6/6/img/67166.jpg)
15 |
LOCK BLOCK "PIAGGIO GENUINE PART" X7, X9, X10, BEVERLY, CARNABY/APRILIA SCARABEO -577816 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/9/img/66309.jpg)
16 |
KEY SWITCH SPRING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -298838 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/5/img/66305.jpg)
17 |
STEERING FLAT WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -298594 More informationQuantity required : 1 |
||||||
18 |
CM012804 - TRANSMISSION SELLE More informationQuantity required : 1 |
||||||
|
19 |
CM012808 - TRANSMISSION SELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/4/9/img/67149.jpg)
22 |
577129 - LEVIER More informationQuantity required : 1 |
||||||
|
23 |
577130 - PLAQUE More informationQuantity required : 1 |
||||||
|
24 |
577131 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/6/2/6/img/67626.jpg)
25 |
620415 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/4/8/img/67148.jpg)
26 |
577128 - ACCOUPLEMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
32 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/5/img/66035.jpg)
33 |
SCREW - 4,2X13 FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE PIAGGIO -259349 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
34 |
LOCK STRAP (L180 MM) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -145298 More informationQuantity required : 2 |
||||||
|
35 |
299972 - VIS More informationQuantity required : 1 |
||||||
|
36 |
576629 - LEVIER FERMETURE More informationQuantity required : 1 |
||||||
|
37 |
577620 - ECROU More informationQuantity required : 1 |
All the exploded views of this vehicle
-
