Vehicle Exploded View - DERBI ATLANTIS 50 ATLANTIS RED BULLET AIR 2001
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

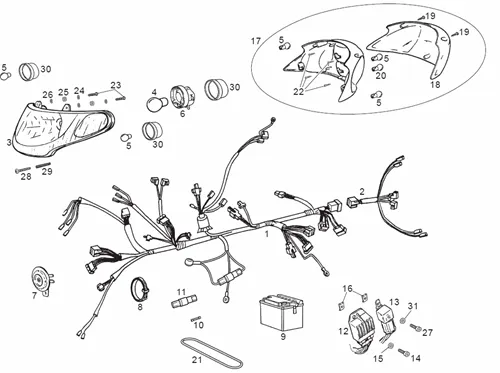

Tables : 7 CIRCUIT ELECTRIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1125/ATLANTIS_RED_BULLET_AIR_2001_7.png)
1 |
00G01017301 - ENSEMB.INSTALLATION ELECTRIQUE More informationQuantity required : 1 |
||||||
|
1 |
00G01026301 - CTO.INSTAL.ELECT.ATL 01 RED.BU More informationQuantity required : 1 |
||||||
|
2 |
00G05703051 - FAISCEAU PHARE TEMOIN More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/7/0/img/63970.jpg)
3 |
HEADLAMP "PIAGGIO GENUINE PART" 50 DIESIS -00G01018011 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/9/8/img/67298.jpg)
5 |
AMPOULE/LAMPE 12V 10W BAU15S/RY10 ORANGE OEM PIAGGIO COMMON A LA RANGE-584332 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/3/1/img/72331.jpg)
6 |
DOOR AMPOULE DE HEADLAMP OEM PIAGGIO APRILIA 50-125 MX 2004 >, 50 MOJITO-AP8224609 More informationQuantity required : 1 |
||||||
|
7 |
00F01001311 - ZLAXON COMPLET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/9/9/img/63899.jpg)
8 |
HOSE CLAMP NYLON TYPE RILSAN (290X4. 8) OEM PIAGGIO COMMON A LA RANGE-00F00900531 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/7/0/img/65970.jpg)
9 |
BATTERY 12V 4AH YB4L-B OEM PIAGGIO COMMON A LA RANGE-234390 More informationQuantity required : 1 |
||||||
|
10 |
00G01000911-FUSIBLE 4 AH. More informationQuantity required : 1 |
||||||
|
11 |
00G02300811-DOOR-FUSIBLE More informationQuantity required : 1 |
||||||
|
12 |
00G01001841 - REGULATEUR AC/DC. More informationQuantity required : 1 |
||||||
|
13 |
00G03900011 - ENS.RELAIS DEMARRAGE ELECT. More informationQuantity required : 1 |
||||||
|
14 |
VIS T.CREUSE 5M80X15 D912/8.8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/6/img/69496.jpg)
15 |
WASHER PLATE (5X10) OEM PIAGGIO COMMON A LA RANGE-847226 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/1/9/img/64119.jpg)
16 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/6/3/img/63963.jpg)
17 |
TAILLIGHT- "PIAGGIO GENUINE PART" 50 DIESIS -00G01008321 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/6/2/img/63962.jpg)
18 |
LENS FOR TAIL LAMP "PIAGGIO GENUINE PART" 50 DIESIS -00G01004341 More informationQuantity required : 1 |
||||||
|
19 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/9/9/img/65799.jpg)
20 |
181747 - AMPOULE 12V 5W More informationQuantity required : 1 |
||||||
|
21 |
00G01802361 - SOUS-ENS.BRIDE FIX.BATTERIE More informationQuantity required : 1 |
||||||
|
22 |
00011031401-SCREW TARAUD 3, 6X14 BLACK CL89H More informationQuantity required : 1 |
||||||
|
23 |
00011031801-SCREW TARAUD 3, 6X18 BLACK CL89H More informationQuantity required : 1 |
||||||
|
24 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/8/1/img/63881.jpg)
25 |
RUBBER GUIDE-CABLE/RUBBER MOUNT OEM DERBI 50 SENDA 2000 > 2017/GILERA 50 SMT, RCR/APRILIA 50-125 SX, RX-00D01500021 More informationQuantity required : 1 |
||||||
|
26 |
|
||||||
|
27 |
00000004612-SCREW A HEAD ALLEN 6M100X12. More informationQuantity required : 1 |
||||||
|
28 |
00012044000-SCREW More informationQuantity required : 1 |
||||||
|
29 |
00G02302501-R-SPRING REGLAGE HEADLAMP FRONT More informationQuantity required : 1 |
||||||
|
30 |
00G05701141-R-PROTECTEUR DOOR-LAMPE HEADLAMP More informationQuantity required : 1 |
||||||
|
31 |
BOULON S03105900 |
