Vehicle Exploded View - DERBI ATLANTIS 50 ATLANTIS RED BULLET AIR 2001
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

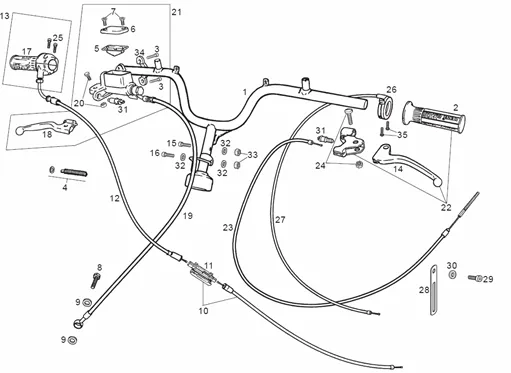

Tables : 6 GUIDON - COMMANDES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1125/ATLANTIS_RED_BULLET_AIR_2001_6.png)
1 |
00G00907011A - SOUS-ENSEMBLE GUIDON More informationQuantity required : 1 |
||||||
|
2 |
00F00930071 - IMPUGNATURA NEE GAZ More informationQuantity required : 1 |
||||||
|
3 |
00000004620 - VIS T. CREUSE 6M100X20. More informationQuantity required : 1 |
||||||
|
4 |
00H02101811 - R-ENSEM.KIT REPAR. POMPE SENDA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/6/5/1/img/64651.jpg)
5 |
FRONT MASTER CYLINDER GASKET "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H02100861 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/6/4/8/img/64648.jpg)
6 |
FRONT BRAKE MASTER CYLINDER COVER "PIAGGIO GENUINE PART" GILERA 50 SMT-RCR 2006> -00H02100191- More informationQuantity required : 1 |
||||||
|
7 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/9/5/8/img/69958.jpg)
8 |
862494 - R-TORNILLO RACORD HIDRAULICO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/3/0/3/img/70303.jpg)
9 |
GASKET/WASHER HOSE OF BRAKE OEM PIAGGIO 50 DERBI 50 SENDA 2000 >/APRILIA RX, SX, RS, TUONO/GILERA 50 SMT, RCR-867238 More informationQuantity required : 1 |
||||||
|
10 |
00G00905891-SOUS-ENS. CABLE-GAINE AR. THROTTLE H More informationQuantity required : 1 |
||||||
|
11 |
00G00900861 - BOITE DE CONNEXION CABLES GAZ More informationQuantity required : 1 |
||||||
|
12 |
00G00906171-ENSEMBLE CABLE GAINE THROTTLE More informationQuantity required : 1 |
||||||
|
13 |
00G00906081-ENSEMBLE GRIP THROTTLE More informationQuantity required : 1 |
||||||
|
14 |
00G00900291-BRAKE LEVER REAR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/2/0/img/63620.jpg)
15 |
00002084011 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/5/2/img/63652.jpg)
16 |
SCREW BTR (8X45) OEM PIAGGIO COMMON A LA RANGE-00004184500 More informationQuantity required : 1 |
||||||
|
17 |
00F00930091 - CAOUT. DE PIGNEE GAZ More informationQuantity required : 1 |
||||||
|
18 |
00G00901201 - MANETTE DU FREIN AVANT More informationQuantity required : 1 |
||||||
|
19 |
00G00905751 - R-ENS.TUYAU LIQ.FREINS AVANT H More informationQuantity required : 1 |
||||||
|
20 |
00F05800021 - VIS AVEC ECROU More informationQuantity required : 1 |
||||||
|
21 |
BRAKE MASTER CYLINDER FRONT OEM PIAGGIO GILERA 50 SMT, RCR 1998 > 2003-00G02102081 More informationQuantity required : 1 |
||||||
|
22 |
00G02106611-ENS. DOOR-MANETTE LEFT More informationQuantity required : 1 |
||||||
|
23 |
00G00904431 - SOUS-ENS.CABLE-GAINE FREIN AR. More informationQuantity required : 1 |
||||||
|
24 |
00G00900211 - R-ENSEMB.VIS ARTICULATION MANE More informationQuantity required : 1 |
||||||
|
25 |
00F00901151 - VIS FIXATION COUVRE POIGNEE GA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/8/8/img/72188.jpg)
26 |
CONTROL STARTER OEM PIAGGIO APRILIA 50 RALLY, RX, SX, GULLIVER, AMICO, SR/DERBI 50 SENDA 2008 > 2010-AP8212529 More informationQuantity required : 1 |
||||||
|
27 |
00G00901651-CABLE ET GAINE AIR. More informationQuantity required : 1 |
||||||
|
28 |
00G03702181 - BRIDE FIX. TUYAU HUILE POMPE-B More informationQuantity required : 1 |
||||||
|
29 |
00004061600-SCREW More informationQuantity required : 1 |
||||||
|
30 |
BOULON S03105900 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/7/0/img/63870.jpg)
31 |
INTERRUPTEUR DE STOP OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA SX, RX 2006, RS 2006 > 2010-00D01000701 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/9/6/img/63596.jpg)
32 |
WASHER PLATE (8. 4X15. 8X1. 5) OEM PIAGGIO COMMON A LA RANGE-00000031080 More informationQuantity required : 1 |
||||||
|
33 |
00000023080-NUT INDESSERABLE 8M125 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/8/6/img/63886.jpg)
34 |
CAVALIER/HALF CLAMP DE BRAKE MASTER CYLINDER FRONT OEM DERBI 50 SENDA 2000 > 2010 GILERA 50 SMT, RCR 20006 > 2010-00D02100901 More informationQuantity required : 1 |
||||||
|
35 |
|
