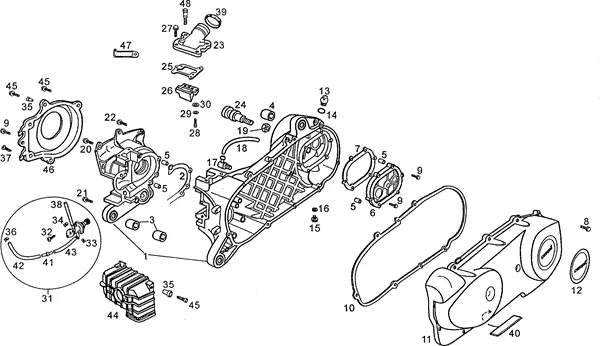

Moteur : 15 GROUPE DÉMARREUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1130/ATLANTIS_O2_DERBI_1999-2000_EXPORT_15.png)
1 |
00G03009631 - ENSEMBLE CARTERS HUNTER More informationQuantity required : 1 |
||||||
|
2 |
00G03001031 - JOINT DE CARTERS. More informationQuantity required : 1 |
||||||
|
3 |
00G02201711 - SOUS-ENS.SILENTBLOC FIX.MOT. V More informationQuantity required : 1 |
||||||
|
4 |
00G01800141 - SOUS-E.SILENTBLOC AMORTISSEUR More informationQuantity required : 1 |
||||||
|
5 |
00G03001021 - CENTREUR CARTERS More informationQuantity required : 1 |
||||||
|
6 |
00G03002331 - COUVERCLE DU REDUCTEUR More informationQuantity required : 1 |
||||||
|
7 |
00G06401031 - JOINT COUVERCLE REDUCTEUR VM.- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/4/img/71944.jpg)
8 |
SCREW FLANGE TH (6X30) OEM PIAGGIO COMMON A LA RANGE-AP8152281 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/0/img/72720.jpg)
9 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774 More informationQuantity required : 1 |
||||||
|
10 |
00G03001321 - JOINT COUVERCLE CARTER G. More informationQuantity required : 1 |
||||||
|
11 |
00G06401061 - R-S-ENSEMBLE COUVERCLE CARTERC More informationQuantity required : 1 |
||||||
|
12 |
00G04401991 - PLAQUE DERBI COUV.CARTER G. More informationQuantity required : 1 |
||||||
|
13 |
00G03000081 - VIS DE REMPLISSAGE D'HUILE. More informationQuantity required : 1 |
||||||
|
14 |
00G03000621 - JOINT TORIQUE VIS REMPLIS.HUIL More informationQuantity required : 1 |
||||||
|
15 |
00G03000131 - VIS VIDANGE HUILE 8M125X16.D-6 More informationQuantity required : 1 |
||||||
|
16 |
00G03000121 - RONDELLE VIDANGE HUILE More informationQuantity required : 1 |
||||||
|
17 |
00G03000601 - RACCORD EVACUATION GAZ CARTER More informationQuantity required : 1 |
||||||
|
18 |
00G03000651 - TUBE EVACUATION MOTEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/1/5/img/63715.jpg)
19 |
NUT AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-00023108000 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/6/7/img/66367.jpg)
20 |
SCREW FLANGE TH (6X35) OEM PIAGGIO COMMON A LA RANGE-414838 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/0/6/7/img/64067.jpg)
21 |
SCREW - FOR CRANKCASE (M6 100X40) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G03002091- More informationQuantity required : 1 |
||||||
|
22 |
00G03003091 - BOULON SERRAGE CARTERS (6X50)H More informationQuantity required : 1 |
||||||
|
23 |
00G02500061 - BUSE DU CARBURATEUR More informationQuantity required : 1 |
||||||
|
23 |
00G02504061 - BUSE DU CARBURATEUR More informationQuantity required : 1 |
||||||
|
24 |
00G01200151 - AXE MOUVEMENT GIRATOIRE MACHOI More informationQuantity required : 1 |
||||||
|
25 |
00G02501051 - JOINT BUSE CARBURATEUR More informationQuantity required : 1 |
||||||
|
26 |
00G02501641 - ENSEMB.SUPPORT VALVE ADMIS. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/7/img/65447.jpg)
27 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-018639 More informationQuantity required : 1 |
||||||
|
28 |
|
||||||
|
29 |
VIS |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/9/8/img/63598.jpg)
30 |
WASHER PLATE DE MAINTIEN SPROCKET BV (4) OEM PIAGGIO GILERA 50 SMT, RCR 2006 > 2010/DERBI 50 SENDA 2006 > 2010APRILIA 50 SX, RX, RS 2006 > 2010-00000033040 More informationQuantity required : 1 |
||||||
|
31 |
00G03703021 - ENSEMBLE POMPE A HUILE More informationQuantity required : 1 |
||||||
|
31 |
00G03705021 - ENSEMBLE POMPE A HUILE More informationQuantity required : 1 |
||||||
|
32 |
|
||||||
|
33 |
00D03700131 - CRAMPON ELASTIQUE TUBE ESSE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/0/5/img/66705.jpg)
34 |
CLAMP (5MM) SERRAGE TUBE OEM PIAGGIO COMMON A LA RANGE-486149 More informationQuantity required : 1 |
||||||
|
35 |
00G03601871-BUSH DE SERRAGE TURBINE More informationQuantity required : 1 |
||||||
|
36 |
00G03700131 - ANNEAU TUBE RESERVOIR D'HUILE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/2/4/1/img/64241.jpg)
36 |
HOSE CLAMP HOSE (7, 8-8, 3) OEM PIAGGIO COMMON A LA RANGE-00H00400501 More informationQuantity required : 1 |
||||||
|
37 |
|
||||||
|
38 |
00G03701111 - TUYAU SORTIE HUILE VAMOS-K More informationQuantity required : 1 |
||||||
|
38 |
00G03702121 - TUYAU D'HUILE POMPE-CARB. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/8/3/9/img/64839.jpg)
39 |
00H03800451 - COLLIER More informationQuantity required : 1 |
||||||
|
40 |
00G06400141 - PROTECTEUR COURROIE VARIATEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/0/9/8/img/64098.jpg)
41 |
00G03701031 - RACCORD ENTREE DIHUILE More informationQuantity required : 1 |
||||||
|
42 |
00G00400781 - TUYAU ESSENCE More informationQuantity required : 1 |
||||||
|
42 |
00G03702111 - TUYAU SORTIE HUILE VAMOS-K More informationQuantity required : 1 |
||||||
|
43 |
00G03702221 - TUYAU HUILE POMPE-RACCORD More informationQuantity required : 1 |
||||||
|
43 |
00G03703221 - TUBO ACEITE BOMBA-RACOR PREDAT More informationQuantity required : 1 |
||||||
|
44 |
00G03001981 - ENS.CARCASSE ENVELOPPE CYLINDR More informationQuantity required : 1 |
||||||
|
45 |
00G03600991-BOLT SERRAGE TURBINE H. (6X16 More informationQuantity required : 1 |
||||||
|
46 |
00G03000151-ENS. COVER DE TURBINE VAMOS More informationQuantity required : 1 |
||||||
|
47 |
00G03702181 - BRIDE FIX. TUYAU HUILE POMPE-B More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/6/2/img/109062.jpg)
48 |
SCREW TORX (6X25) OEM PIAGGIO COMMON A LA RANGE-1A000352 More informationQuantity required : 1 |
||||||
|
48 |
SCREW TORX (6X25) OEM PIAGGIO COMMON A LA RANGE-1A000352 More informationQuantity required : 1 |
