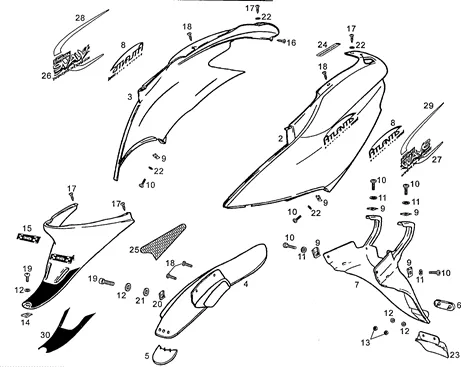

Vehicle Exploded View - DERBI ATLANTIS 50 ATLANTIS O2 DERBI 1999-2000 EXPORT

	P2R reference	194219
	Maker reference	00G05906831

00G05906831 - CORPS INFERIEUR SELLE HUNTER

	P2R reference	194220
	Maker reference	00G05906832

00G05906832 - CORPS INFERIEUR SELLE HUNTER

	P2R reference	194061
	Maker reference	00G05906833

00G05906833 - CORPS INFERIEUR SELLE HUNTER

	P2R reference	194221
	Maker reference	00G05906834

00G05906834 - CORPS INFERIEUR SELLE HUNTER

	P2R reference	193979
	Maker reference	00G06800581C5

00G06800581C5 - CORPS INFERIEUR SELLE

	P2R reference	194146
	Maker reference	00G06800582

00G06800582 - CORPS INFERIEUR SELLE

	P2R reference	194222
	Maker reference	00G00502701C5

00G00502701C5 - SCTO.TAPA LAT.IZ.AZ.LI.ATLAN

	P2R reference	194223
	Maker reference	00G00502702C5

00G00502702C5 - R-S-ENSEMBLE COUVERCLE LATERAL

	P2R reference	194224
	Maker reference	00G00502703C5

00G00502703C5 - SCTO.TAPA LAT.IZ.AZ.END.ATLA

	P2R reference	194225
	Maker reference	00G00502704C5

00G00502704C5 - SCTO.TAPA LAT.IZ.RJ.AVE.ATLA

	P2R reference	194226
	Maker reference	00G00511701C5

00G00511701C5 - R-S-ENSEMBLE COUVERCLE LATERAL

	P2R reference	194227
	Maker reference	00G00511702C5

00G00511702C5 - R-S-ENSEMBLE COUVERCLE LATERAL

	P2R reference	194228
	Maker reference	00G00502691C5

00G00502691C5 - SCTO.TAPA LAT.DR.AZ.LI.ATLANT

	P2R reference	194229
	Maker reference	00G00502692C5

00G00502692C5 - R-S-ENSEMBLE COUVERCLE LATERAL

	P2R reference	194230
	Maker reference	00G00502693C5

00G00502693C5 - SCTO.TAPA LAT.DR.AZ.END.ATLA

	P2R reference	194231
	Maker reference	00G00502694

00G00502694 - SCTO.TAPA LAT.DR.RJ.AVELL.ATLA

	P2R reference	194232
	Maker reference	00G00511691C5

00G00511691C5 - R-S-ENSEMBLE COUVERCLE LATERAL

	P2R reference	194233
	Maker reference	00G00511692C5

00G00511692C5 - R-S-ENSEMBLE COUVERCLE LATERAL

	P2R reference	193843
	Maker reference	00G00702141

00G00702141 - GARDE-BOUE ARRIERE

	P2R reference	193844
	Maker reference	00F00700381

00F00700381 - SUPL.GARDE BOUE AR ST

	P2R reference	71568
	Maker reference	AP8124718

CATADIOPTRE REAR OEM PIAGGIO COMMON A LA RANGE MOTO ET MAXI SCOOTER APRILIA-AP8124718

	P2R reference	63995
	Maker reference	00G01507861

MUD FLAP REAR OEM APRILIA 50 ATLANTIS 2006 <-00G01507861

	P2R reference	194234
	Maker reference	00G01819931

00G01819931 - ADHESIF

	P2R reference	194235
	Maker reference	00G01819932

00G01819932 - ADHESIF

	P2R reference	193845
	Maker reference	00G01819933

00G01819933 - ADHESIF

	P2R reference	66009
	Maker reference	254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

	P2R reference	63704
	Maker reference	000121616005

SCREW CRUCIFORME (6X16) MOUNTING AIR FILTER OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2000 > 2017/APRILIA SX, RX,-00012161600

	P2R reference	63876
	Maker reference	00D01200171

WASHER PLATE (6X15) OEM PIAGGIO COMMON A LA RANGE-00D01200171

	P2R reference	69480
	Maker reference	847181

WASHER PLATE (5X15X1) OEM PIAGGIO COMMON A LA RANGE-847181

	P2R reference	63588
	Maker reference	000000230405

NUT AUTOBLOQUANT/NYLSTOP (M4X70) OEM PIAGGIO COMMON A LA RANGE-00000023040

	P2R reference	64119
	Maker reference	00G04401462

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462

	P2R reference	187525
	Maker reference	00H04900231

00H04900231 - CALQUE DERBI 8 FOIS

	P2R reference	63678
	Maker reference	000110325015

SCREW PARKER (3, 6X25) CRUCIFORME DE HEADLAMP FRONT OEM PIAGGIO GILERA 50 SMT, RCR 2011 >-00011032501

	P2R reference	63683
	Maker reference	000110518015

SCREW CRUCIFORME (5. 1X18) TARAUD OEM PIAGGIO COMMON A LA RANGE-00011051801

	P2R reference	63682
	Maker reference	000110516015

00011051601 - VIS TARAUD 5,1X16 NOIR CL89H

	P2R reference	63702
	Maker reference	000121515005

00012151500-SCREW A HEAD RONDE A FENTES C

	P2R reference	64119
	Maker reference	00G04401462

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462

	P2R reference	63922
	Maker reference	00F04201361

WASHER FIBRE (M5X20X2) OEM PIAGGIO COMMON A LA RANGE-00F04201361

	P2R reference
	Maker reference	031059

BOULON S03105900

	P2R reference	194069
	Maker reference	00G00707341

00G00707341 - SUPPLÉMENT GARDEBOUE ARRIERE P

	P2R reference	187485
	Maker reference	00G04401481

00G04401481 - ADHESIF UNLEADED FUEL

	P2R reference	193846
	Maker reference	00G00700271

00G00700271 - ADHESIF

	P2R reference	194236
	Maker reference	00G00503651

00G00503651 - ADHESIF WAVE

	P2R reference	194237
	Maker reference	00G00503652

00G00503652 - ADHESIF WAVE

	P2R reference	194238
	Maker reference	00G00501641

00G00501641 - ADHESIF WAVE

	P2R reference	194239
	Maker reference	00G00501642

00G00501642 - ADHESIF WAVE

	P2R reference	194240
	Maker reference	00G00504221

00G00504221 - ADHESIF

	P2R reference	194241
	Maker reference	00G00504222

00G00504222 - ADHESIF

	P2R reference	194242
	Maker reference	00G00504231

00G00504231 - ADHESIF

	P2R reference	194243
	Maker reference	00G00504232

00G00504232 - ADHESIF

	P2R reference	187385
	Maker reference	00G04607501

00G04607501 - ADHESIF
