Vehicle Exploded View - DERBI ATLANTIS 50 Atlantis 50 O2 Bullet 2ª ed E2 2003 (APAC EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

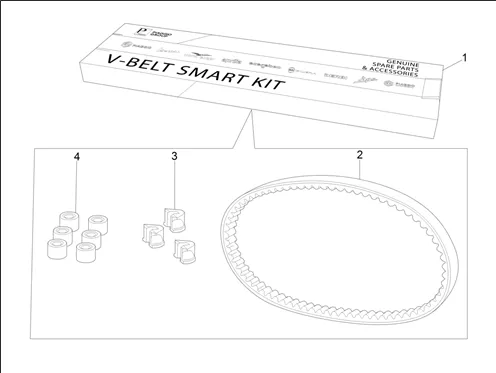

Maintenance : 21 KIT TRASMISSIONE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1132/Atlantis_50_O2_Bullet_2_ed_E2_2003_APAC_EMEA_21_20250925174814.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/7/5/9/6/img/157596.jpg)
1 |
KIT TRANSMISSION (BELT, GALETS, GUIDES) OEM PIAGGIO 50 TYPHOON 2004 > 11, NRG 2005 >, VESPA PRIMAVERA 2T 2013 > 17, SPRINT 2T 2014 > 17/GILERA 50 RUNNER 2005 > 17/APRILIA 50 SR H2O 2004 > 10-1R000426 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/0/7/img/66507.jpg)
2 |
DRIVE BELT SCOOTER OEM PIAGGIO 50 TYPHOON 2004 >, NRG 1998 >, VESPA PRIMAVERA 2013 >/APRILIA 50 SR 2003 > 2009/GILERA 50 STALKER 1997 >, RUNNER 1997 >-436864 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/3/4/img/66234.jpg)
3 |
GUIDE/PATIN DE VARIATOR OEM PIAGGIO 50 ZIP 1996 >, TYPHOON 1996 >, FLY 2005 >, LIBERTY 1998 >, NRG 1998 >, VESPA LX 2005 >, VESPA-S 2007 >/GILERA 50 STALKER, RUNNER 1997 >/APRILIA 50 SR 2011 >-289931 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/1/0/img/73110.jpg)
4 |
GALET/ROLLER (19X15, 5) 6, 4 G OEM PIAGGIO 50 FLY 4T, LIBERTY, NRG, TYPHOON, ZIP 4T, VESPA LX 4T, PRIMAVERA, SPRINT/APRILIA 50 SPORT-CITY, SR/GILERA 50 DNA, RUNNER, STALKER (SET OF 6)-CM1102025 More informationQuantity required : 1 |
