Vehicle Exploded View - DERBI ATLANTIS 50 Atlantis 50 O2 Bullet 2ª ed E2 2003 (APAC EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

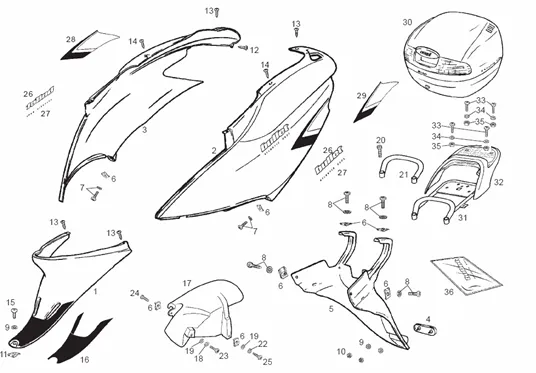

Châssis - parties plastiques - carrosseries : 10 CHASSIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1132/Atlantis_50_O2_Bullet_2_ed_E2_2003_APAC_EMEA_10_20250925174656.png)
1 |
00G06802582C - CORPS INFERIEUR SELLE More informationQuantity required : 1 |
||||||
|
1 |
00G06802581 - CORPS INFERIEUR SELLE More informationQuantity required : 1 |
||||||
|
1 |
00G06802583 - CORPS INFERIEUR SELLE More informationQuantity required : 1 |
||||||
|
2 |
00G00533703C5 - R-S-ENSEMBLE COUVERCLE LATERAL More informationQuantity required : 1 |
||||||
|
2 |
00G00533702C5 - R-S-ENSEMBLE COUVERCLE LATERAL More informationQuantity required : 1 |
||||||
|
2 |
00G00533701C - R-S-ENSEMBLE COUVERCLE LATERAL More informationQuantity required : 1 |
||||||
|
3 |
00G00533692C - R-S-ENSEMBLE COUVERCLE LATERAL More informationQuantity required : 1 |
||||||
|
3 |
00G00533693C5 - R-S-ENSEMBLE COUVERCLE LATERAL More informationQuantity required : 1 |
||||||
|
3 |
00G00533691C5 - R-S-ENSEMBLE COUVERCLE LATERAL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/6/8/img/71568.jpg)
4 |
CATADIOPTRE REAR OEM PIAGGIO COMMON A LA RANGE MOTO ET MAXI SCOOTER APRILIA-AP8124718 More informationQuantity required : 1 |
||||||
|
5 |
MUD FLAP REAR OEM APRILIA 50 ATLANTIS 2006 <-00G01507861 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
6 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/2/3/img/63923.jpg)
7 |
SCREW CRUCIFORME (6X16) MAINTIEN PANEL DE EDGE OU COQUE REAR OEM PIAGGIO APRILIA 50 RS 2006 > 2010-00F05900041 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/0/0/8/img/65008.jpg)
8 |
SCREW CRUCIFORME (6X16) BOCAL COOLING OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2005 > 2015/APRILIA SX, RX-00H05900021 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/8/0/img/69480.jpg)
9 |
WASHER PLATE (5X15X1) OEM PIAGGIO COMMON A LA RANGE-847181 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/8/8/img/63588.jpg)
10 |
NUT AUTOBLOQUANT/NYLSTOP (M4X70) OEM PIAGGIO COMMON A LA RANGE-00000023040 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/1/9/img/64119.jpg)
11 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/7/8/img/63678.jpg)
12 |
SCREW PARKER (3, 6X25) CRUCIFORME DE HEADLAMP FRONT OEM PIAGGIO GILERA 50 SMT, RCR 2011 >-00011032501 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/8/3/img/63683.jpg)
13 |
SCREW CRUCIFORME (5. 1X18) TARAUD OEM PIAGGIO COMMON A LA RANGE-00011051801 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/8/2/img/63682.jpg)
14 |
00011051601 - VIS TARAUD 5,1X16 NOIR CL89H More informationQuantity required : 1 |
||||||
|
15 |
00012151500-SCREW A HEAD RONDE A FENTES C More informationQuantity required : 1 |
||||||
|
16 |
00G04607501 - ADHESIF More informationQuantity required : 1 |
||||||
|
17 |
00G00704141 - GARDE-BOUE ARRIERE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/8/6/img/63786.jpg)
18 |
WASHER PLATE (6X12) OEM PIAGGIO COMMON A LA RANGE-00402060001 More informationQuantity required : 1 |
||||||
|
19 |
|
||||||
|
20 |
00000004830-BOLT HEAD HEX. 8M125X30 D933 More informationQuantity required : 1 |
||||||
|
21 |
00G01802441A-GRIP REAR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/7/6/img/63876.jpg)
22 |
WASHER PLATE (6X15) OEM PIAGGIO COMMON A LA RANGE-00D01200171 More informationQuantity required : 1 |
||||||
|
23 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
24 |
SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249 More informationQuantity required : 1 |
||||||
|
25 |
00092063514-SCREW More informationQuantity required : 1 |
||||||
|
26 |
00G01829931 - ADHESIF More informationQuantity required : 1 |
||||||
|
27 |
00G04900573 - ADHESIF More informationQuantity required : 1 |
||||||
|
27 |
00G04900572 - ADHESIF More informationQuantity required : 1 |
||||||
|
27 |
00G04900571 - ADHESIF More informationQuantity required : 1 |
||||||
|
28 |
00G01506402 - ADHESIF More informationQuantity required : 1 |
||||||
|
28 |
00G01506401 - ADHESIF More informationQuantity required : 1 |
||||||
|
28 |
00G01506403 - ADHESIF More informationQuantity required : 1 |
||||||
|
29 |
00G04906541 - ADHESIF More informationQuantity required : 1 |
||||||
|
29 |
00G04906542 - ADHESIF More informationQuantity required : 1 |
||||||
|
29 |
00G04906543 - ADHESIF More informationQuantity required : 1 |
||||||
|
30 |
TOP CASE |
||||||
|
30 |
TOP CASE |
||||||
|
31 |
00G01409191A - ENSAMBLE PORTE-PAQUET AR. More informationQuantity required : 1 |
||||||
|
32 |
COUVERCLE SUP. PORTE-BAGAGES |
||||||
|
33 |
00012151500-SCREW A HEAD RONDE A FENTES C More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/6/img/69496.jpg)
34 |
WASHER PLATE (5X10) OEM PIAGGIO COMMON A LA RANGE-847226 More informationQuantity required : 1 |
||||||
|
35 |
|
||||||
|
36 |
00G05152651 - JEU ADHESIF More informationQuantity required : 1 |
||||||
|
36 |
00G05152653 - JEU ADHESIF More informationQuantity required : 1 |
||||||
|
36 |
00G05152652 - JEU ADHESIF More informationQuantity required : 1 |
