Vehicle Exploded View - PIAGGIO VU APE CALESSINO 200 Ape Calessino 200 E4 Model Year 2019
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

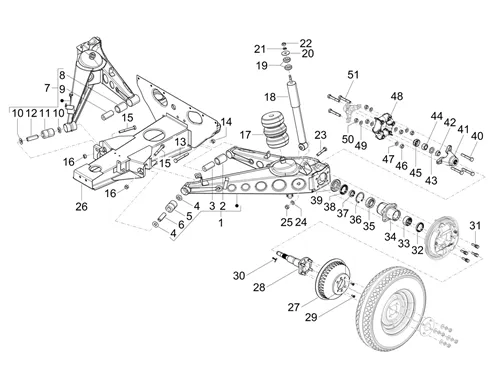

Suspensions - roues : 04.03 SUSPENSION ARRIÈRE - AMORTISSEUR/S
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/858/Ape_Calessino_200_E4_Model_Year_2019_04.03_20251008085554.png)
1 |
B075807 TRIANGOLO LEFT More informationQuantity required : 1 |
|||||||||
|
2 |
226662 CIRCLIPS More informationQuantity required : 1 |
|||||||||
|
3 |
226661 BUSH More informationQuantity required : 1 |
|||||||||
|
4 |
661266 COVER POUSSIERE More informationQuantity required : 2 |
|||||||||
|
5 |
226596 CIRCLIPS More informationQuantity required : 1 |
|||||||||
|
6 |
267065 - ENTRETOISE More informationQuantity required : 1 |
|||||||||
|
7 |
B075808 TRIANGOLO RIGHT More informationQuantity required : 1 |
|||||||||
|
8 |
226662 CIRCLIPS More informationQuantity required : 1 |
|||||||||
|
9 |
226661 BUSH More informationQuantity required : 1 |
|||||||||
|
10 |
661266 COVER POUSSIERE More informationQuantity required : 2 |
|||||||||
|
11 |
226596 CIRCLIPS More informationQuantity required : 1 |
|||||||||
|
12 |
267065 - ENTRETOISE More informationQuantity required : 1 |
|||||||||
|
13 |
643741 SCREW More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/6/5/img/65965.jpg)
14 |
NUT (M10) DE SECURITE OEM PIAGGIO COMMON A LA RANGE-231370 More informationQuantity required : 2 |
|||||||||
|
15 |
643741 SCREW More informationQuantity required : 2 |
|||||||||
|
16 |
NUT (M10) DE SECURITE OEM PIAGGIO COMMON A LA RANGE-231370 More informationQuantity required : 2 |
|||||||||
|
17 |
B076290 RUBBER MOUNT More informationQuantity required : 2 |
|||||||||
|
18 |
B076292 SHOCK ABSORBER More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/5/6/img/65756.jpg)
19 |
RUBBER MOUNT D'AMMORTISSEUR OEM PIAGGIO 50 THREE-WHEELER APE COMMON A LA RANGE, 125 VESPA PX 2005 <-157103 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/1/3/2/img/111132.jpg)
20 |
WASHER PLATE (10. 5X38X3) OEM PIAGGIO COMMON A LA RANGE-567427 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/9/img/65419.jpg)
21 |
WASHER GROWER (10. 6X17. 6X5) OEM PIAGGIO COMMON A LA RANGE-016410 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/5/img/65465.jpg)
22 |
NUT (M10) OEM PIAGGIO COMMON A LA RANGE-020110 More informationQuantity required : 2 |
|||||||||
|
23 |
267068 - VITE More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/7/2/img/66172.JPG)
24 |
WASHER PLATE (20X10. 2X2)-286328 More informationQuantity required : 2 |
|||||||||
|
25 |
NUT (M10) DE SECURITE OEM PIAGGIO COMMON A LA RANGE-231370 More informationQuantity required : 2 |
|||||||||
|
26 |
B075798 TRAVERSA POST. More informationQuantity required : 1 |
|||||||||
|
27 |
B077245 BRAKE DRUM CAST IRON More informationQuantity required : 2 |
|||||||||
|
28 |
B077458 REAR AXLE COMPLETE More informationQuantity required : 2 |
|||||||||
|
29 |
812061656 SCREW More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/9/3/2/img/110932.jpg)
30 |
GOUPILLE (4X28) OEM PIAGGIO COMMON A LA RANGE-012790 More informationQuantity required : 2 |
|||||||||
|
31 |
|
|||||||||
|
32 |
BUSH ETANCHE BEARING WHEEL FRONT (35X47X7) OEM PIAGGIO CARGO-020359 More informationQuantity required : 2 |
|||||||||
|
33 |
661282 BEARING À AGUILLES More informationQuantity required : 2 |
|||||||||
|
34 |
B002344 HUB More informationQuantity required : 2 |
|||||||||
|
35 |
243303R BEARING More informationQuantity required : 2 |
|||||||||
|
36 |
006650 CIRCLIPS S00665000 More informationQuantity required : 2 |
|||||||||
|
37 |
661267 BUSH More informationQuantity required : 2 |
|||||||||
|
38 |
196302 BUSH ETANCHEITEE More informationQuantity required : 2 |
|||||||||
|
39 |
109892 COVER POUSSIERE More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/8/4/img/65384.jpg)
40 |
SCREW TH (10X65) OEM PIAGGIO COMMON A LA RANGE-015594 More informationQuantity required : 3 |
|||||||||
|
41 |
587617 HUB * More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/3/4/2/img/115342.jpg)
42 |
CONE DE FLASQUE HUB REAR OEM PIAGGIO THREE-WHEELER APE COMMON A LA RANGE-128633 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/8/1/img/63781.jpg)
43 |
WASHER RUBBER MOUNT DE TRANSMISSION (30X19X3) OEM PIAGGIO THREE-WHEELER APE-003068 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/1/3/1/img/112131.jpg)
44 |
NUT (18) MOUNTING RUBBER MOUNT DE TRANSMISSION OEM PIAGGIO THREE-WHEELER APE-021118 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/4/6/1/img/111461.jpg)
45 |
CAPUCHON NUT HUB OEM PIAGGIO THREE-WHEELER APE COMMON A LA RANGE-177559 More informationQuantity required : 2 |
|||||||||
|
46 |
NUT (M10) DE SECURITE OEM PIAGGIO COMMON A LA RANGE-231370 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/0/3/7/img/110037.jpg)
47 |
WASHER PLATE (10. 2X20X1) OEM PIAGGIO COMMON A LA RANGE-237246 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/9/3/4/0/img/159340.jpg)
48 |
GASKET ELASTIC DE TRANSMISSION OEM PIAGGIO THREE-WHEELER APE CALESSINO 2013 >, CLASSIC 2017 >-604535 More informationQuantity required : 2 |
|||||||||
|
48 |
604535 - ACCOUPLEMENT More informationQuantity required : 2 |
|||||||||
|
48 |
GASKET ELASTIC DE TRANSMISSION OEM PIAGGIO THREE-WHEELER APE CALESSINO 2013 >, CLASSIC 2017 >-604535 More informationQuantity required : 2 |
|||||||||
|
49 |
WASHER PLATE (10. 2X20X1) OEM PIAGGIO COMMON A LA RANGE-237246 More informationQuantity required : 3 |
|||||||||
|
50 |
NUT (M10) DE SECURITE OEM PIAGGIO COMMON A LA RANGE-231370 More informationQuantity required : 3 |
|||||||||
|
51 |
SCREW TH (10X65) OEM PIAGGIO COMMON A LA RANGE-015594 More informationQuantity required : 3 |
|||||||||
