Vehicle Exploded View - PIAGGIO VU APE CALESSINO 200 Ape Calessino 200 E4 Model Year 2019
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

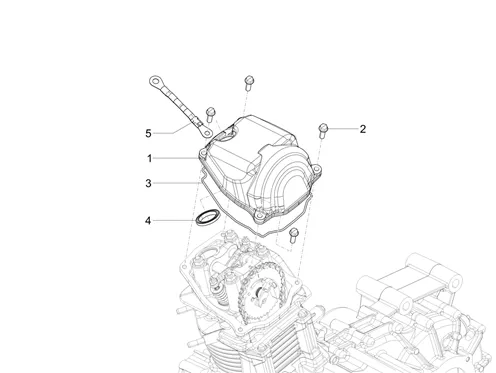

Moteur : 01.07 COUVERCLE CULASSE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/858/Ape_Calessino_200_E4_Model_Year_2019_01.07_20251008085238.png)
1 |
1A006545-COVER CYLINDER HEAD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/7/img/65447.jpg)
2 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-018639 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/4/7/4/img/110474.jpg)
3 |
GASKET COVER DE CYLINDER HEAD OEM PIAGGIO THREE-WHEELER APE CALESSINO 2013 >-B018533 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/4/3/0/img/110430.jpg)
4 |
GASKET TROU DE SPARK PLUG COVER CYLINDER HEAD OEM PIAGGIO APE 200 2013 >/50 SXR APRILIA 2021 >-B014732 More informationQuantity required : 1 |
||||||
|
5 |
1D001894 SANGLE DE MASSE More informationQuantity required : 1 |
