Vehicle Exploded View - APRILIA AMICO 50 Amico LX Sport 1992-1993
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

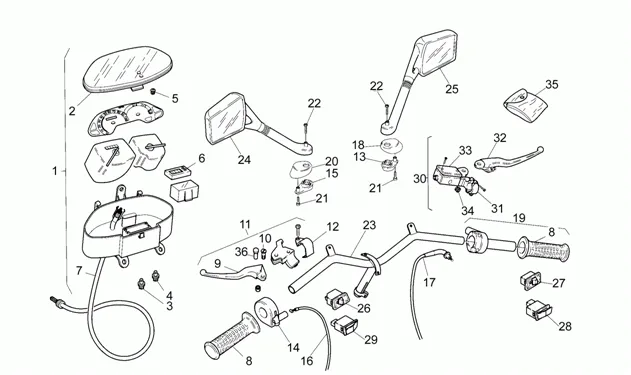

Chassis : 13 GUIDON - COMMANDES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/236/Amico_LX_Sport_1992-1993_13.PNG)
1 |
TABLEAU DE BORD |
||||||
|
2 |
Vitre tableau de bord |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/2/6/0/img/56260.JPG)
3 |
DOOR-AMPOULE COMPLETE-AP8212408 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/2/5/9/img/56259.JPG)
4 |
DOOR AMPOULE 12V 1. 2 W OEM APRILIA-AP8212407 More informationQuantity required : 1 |
||||||
|
5 |
AP8212405-RUBBER HORLOGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/8/7/img/72187.jpg)
6 |
HORLOGE/MONTRE OEM PIAGGIO 50-125 VESPA LX, VESPA-S, LIBERTY, 125-250-300 VESPA GTS, X7, THREE-WHEELER APE 50/APRILIA 125-250-300-400-500 ATLANTIC, 125 SCARABEO/GILERA 50 STAKER-AP8212406 More informationQuantity required : 1 |
||||||
|
7 |
AP8214110-CABLE INSTRUMENT CLUSTER More informationQuantity required : 1 |
||||||
|
8 |
JEU POIGNEE |
||||||
|
9 |
AP8218153 - LEVIER FREIN ARRIERE NU; More informationQuantity required : 1 |
||||||
|
10 |
Pivot levier frein; |
||||||
|
11 |
AP8218136 - COMMANDE FREIN ARRIERE GCHE; More informationQuantity required : 1 |
||||||
|
12 |
AP8218154 - CAVALIER LEVIER FREIN; More informationQuantity required : 1 |
||||||
|
13 |
Base rétroviseur D |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/8/8/img/72188.jpg)
14 |
CONTROL STARTER OEM PIAGGIO APRILIA 50 RALLY, RX, SX, GULLIVER, AMICO, SR/DERBI 50 SENDA 2008 > 2010-AP8212529 More informationQuantity required : 1 |
||||||
|
15 |
Base rétroviseur G |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/5/3/9/img/56539.jpg)
16 |
AP8214108 - CABLE STARTER; More informationQuantity required : 1 |
||||||
|
17 |
AP8214109 - CABLE GAZ; More informationQuantity required : 1 |
||||||
|
18 |
Caoutchouc miroir droite |
||||||
|
19 |
POIGNEE GAZ |
||||||
|
20 |
Caoutchouc |
||||||
|
21 |
Vis |
||||||
|
22 |
VIS RETRO |
||||||
|
23 |
AP8218160 - GUIDON AVEC CATAPHORESE; More informationQuantity required : 1 |
||||||
|
24 |
AP8201725-MIRROR G More informationQuantity required : 1 |
||||||
|
25 |
RETROVISEUR DR. |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/3/1/6/img/56316.jpg)
26 |
BUTTON/CONTACTEUR INDICATOR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 APRILIA 1995 > 2009-AP8215767 More informationQuantity required : 1 |
||||||
|
27 |
Pous. feux 2 voies |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/4/4/8/img/47448.jpg)
28 |
BUTTON/CONTACTEUR DE STARTER MOTOR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 APRILIA 1995 > 2009-AP8124208 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/4/4/9/img/47449.jpg)
29 |
BUTTON/CONTACTEUR AVERTISSEUR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 APRILIA 1995 > 2009-AP8124209 More informationQuantity required : 1 |
||||||
|
30 |
Maît. cyl. frein AV |
||||||
|
31 |
AP8218155-CAVALIER LEVER BRAKE More informationQuantity required : 1 |
||||||
|
32 |
AP8218156-LEVER BRAKE FRONT + REGL. More informationQuantity required : 1 |
||||||
|
33 |
AP8213475-COVER PUMP More informationQuantity required : 1 |
||||||
|
34 |
AP8113414 - HUBLOT POMPE FREIN More informationQuantity required : 1 |
||||||
|
35 |
AP8213191 - KIT REVISION POMPE More informationQuantity required : 1 |
||||||
|
36 |
Encliquetage; |
