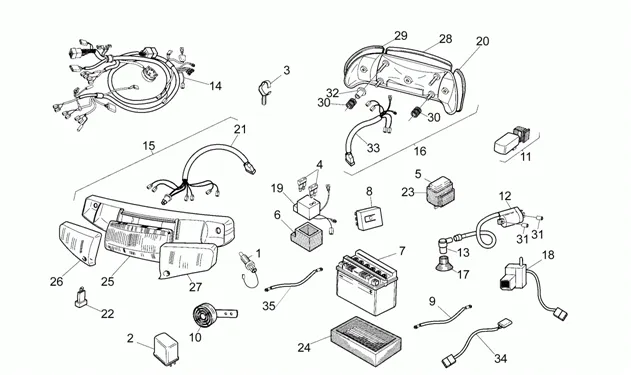

Chassis : 12 CIRCUIT ELECTRIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/236/Amico_LX_Sport_1992-1993_12.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/8/9/img/67189.jpg)
1 |
INTERRUPTEUR LAMP STOP OEM PIAGGIO 50 NRG, ZIP, TYPHOON, LIBERTY, 125 X9, VESPA LXV, 250-300 VESPA GTV/APRILIA 50 SR H2O, 125 ATLANTIC, RS, SPORT-CITY/GILERA 50 STALKER-580953 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/6/3/img/71563.jpg)
2 |
CENTRE CLIGNOTANTE OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER APRILIA ET MOTO 125 CC-AP8124235 More informationQuantity required : 1 |
||||||
3 |
AP8220269-GUIDE-CABLE More informationQuantity required : 1 |
||||||
|
4 |
CM225607-FUSIBLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/2/9/img/72329.jpg)
5 |
RELAIS 12V/30A OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA/MOTO-GUZZI-AP8224462 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/2/7/1/img/56271.jpg)
6 |
RUBBER DOOR FUSIBLE OEM APRILIA 50 RS 1993 > 2005-AP8212525 More informationQuantity required : 1 |
||||||
|
6 |
AP8220342 - CAOUTCHOUC P-FUSIBLES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/7/0/img/65970.jpg)
7 |
BATTERY 12V 4AH YB4L-B OEM PIAGGIO COMMON A LA RANGE-234390 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/2/3/5/img/56235.jpg)
8 |
VOLTAGE REGULATOR- "PIAGGIO GENUINE PART" 50 RS 1993>2005, RX 2002>2004, MX 2004>, TUAREG 1990>1992, PEGASO, EUROPA, CLASSIC -AP8212121- More informationQuantity required : 1 |
||||||
|
8 |
AP8212799 - REGULATEUR DE TENSION; More informationQuantity required : 1 |
||||||
|
9 |
CABLAGE NEGATIF BATTERIE |
||||||
|
10 |
AVERTISSEUR |
||||||
|
11 |
Centrale cdi |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/6/7/9/img/55679.jpg)
12 |
IGNITION COIL - HIGH TENSION "PIAGGIO GENUINE PART" APRILIA 50 RALLY, GULLIVER, SONIC, AMICO -AP8206125 More informationQuantity required : 1 |
||||||
|
13 |
AP8206108-MANIFOLD SPARK PLUG More informationQuantity required : 1 |
||||||
|
14 |
FAISCEAU PRINCIPAL |
||||||
|
14 |
FAISCEAU PRINCIPALE |
||||||
|
14 |
Câblage principal; |
||||||
|
15 |
Phare avant; |
||||||
|
16 |
AP8212442-LAMP REAR More informationQuantity required : 1 |
||||||
|
17 |
AP8206128 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
|
18 |
Lum.comp.p-casque |
||||||
|
19 |
AP8120754-RUBBER P-FUSIBLES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/2/3/7/img/56237.jpg)
19 |
AP8212143 - BLOC FUSIBLES/DIODE More informationQuantity required : 1 |
||||||
|
20 |
AP8212443-GLACE CLIGN. AR G More informationQuantity required : 1 |
||||||
|
21 |
Câblage feu AV |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/2/5/4/img/56254.jpg)
22 |
DIODE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 APRILIA 1998 > 2005, 650 PEGASO, 1000 CAPONORD, FUTURA-AP8212382 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/7/img/72277.jpg)
23 |
SANGLE RUBBER DE BLOC OEM PIAGGIO COMMON A LA RANGE-AP8220283 More informationQuantity required : 1 |
||||||
|
24 |
AP8230535-BO? TIER BATTERY More informationQuantity required : 1 |
||||||
|
25 |
Glace phare avant |
||||||
|
26 |
Glace clign. AV D |
||||||
|
27 |
Glace clign. AV G |
||||||
|
28 |
AP8212459-GLACE HEADLAMP AR More informationQuantity required : 1 |
||||||
|
29 |
Glace clign. AR D |
||||||
|
30 |
AP8112599 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/0/img/71430.jpg)
31 |
SPACER OEM PIAGGIO COMMON A LA RANGE-AP8121041 More informationQuantity required : 1 |
||||||
|
32 |
AP8121665-" BUSH EN " " T " " " More informationQuantity required : 1 |
||||||
|
33 |
Câblage feu AR |
||||||
|
34 |
Câblage clignotants |
||||||
|
35 |
CABLAGE RECHARGE BATTERI |
