Vehicle Exploded View - APRILIA AMICO 50 1996-1998
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

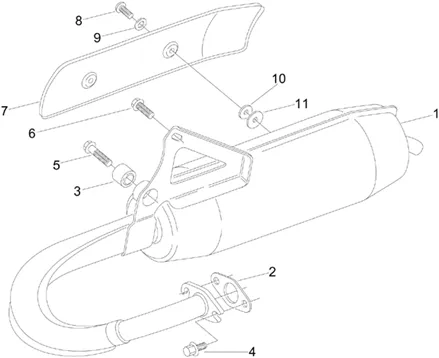

Chassis : 28.26 GROUPE D’ECHAPPEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/235/Amico_50_1996-1998_28.26.PNG)
1 |
AP8219273 - POT D'ECHAPPEMENT More informationQuantity required : 1 |
||||||
|
1 |
Pot - Sf |
||||||
|
1 |
Pot catalytique - A |
||||||
|
1 |
Pot -b- |
||||||
|
1 |
Pot - F |
||||||
|
1 |
Pot - Nl/D |
||||||
|
1 |
Pot catalytique - D |
||||||
|
1 |
Pot catalytique -Nl |
||||||
|
1 |
Pot catalytique -Ch |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/7/2/7/img/56727.jpg)
2 |
AP8219212-GASKET SILENCER D'ECHAPPEMENT More informationQuantity required : 1 |
||||||
|
3 |
AP8220357-RUBBER MOUNT SILENCER VERT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/8/img/71898.jpg)
4 |
SCREW BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8150521 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/1/img/71951.jpg)
5 |
SCREW FLANGE TH (8X35) OEM PIAGGIO COMMON A LA RANGE-AP8152289 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/8/img/71948.jpg)
6 |
SCREW FLANGE TH (8X20) OEM PIAGGIO COMMON A LA RANGE-AP8152286 More informationQuantity required : 1 |
||||||
|
7 |
PROTECTION POT ECHAPP |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/6/4/img/71864.jpg)
8 |
SCREW BTR HEAD BOMBEE (6X12) OEM PIAGGIO COMMON A LA RANGE-AP8150340 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/3/img/71833.JPG)
9 |
WASHER PLATE (6. 4X12. 5) OEM PIAGGIO COMMON A LA RANGE-AP8150178 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/4/img/71834.jpg)
10 |
WASHER PLATE (6, 6X18X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8150179 More informationQuantity required : 2 |
||||||
|
11 |
Rondelle |
