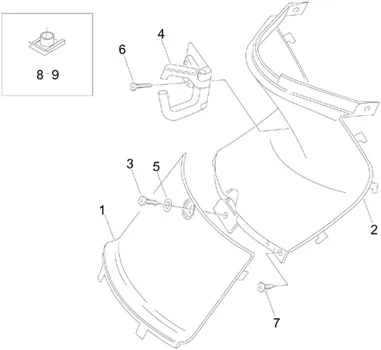

Chassis : 28.14 CARROSSERIE POSTERIEURE I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/235/Amico_50_1996-1998_28.14.PNG)
1 |
Couvercle batterie, noir; |
||||||
|
1 |
Couvercle batterie, gris; |
||||||
|
1 |
Couvercle batterie, bleu; |
||||||
|
2 |
Protect. batt. b; |
||||||
|
2 |
Protect. batt. r; |
||||||
|
2 |
Protect. batt. b; |
||||||
|
2 |
Protect. batt. g; |
||||||
|
2 |
Protect. batt. b; |
||||||
|
2 |
Tablier batterie v mau; |
||||||
|
2 |
Tablier batterie azur; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/1/img/71881.jpg)
3 |
SCREW PARKER (5, 5X22) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8150425 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/3/5/img/72135.jpg)
4 |
ACROCHE CASQUE OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER APRILIA-AP8201534 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/3/img/71873.jpg)
5 |
WASHER PLATE (5, 5X15X1, 2) OEM PIAGGIO COMMON A LA RANGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/0/img/71880.JPG)
6 |
SCREW (4, 2X25) OEM PIAGGIO COMMON A LA RANGE-AP8150423 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/7/4/img/50874.jpg)
7 |
SCREW PARKER (5, 5X15, 9) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8150426 More informationQuantity required : 4 |
||||||
|
8 |
Clip |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/5/7/img/72157.jpg)
9 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-AP8202449 More informationQuantity required : 2 |
