Eclatés de véhicule - APRILIA SPORT CITY ONE 50 4T 2V E2 2008-2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

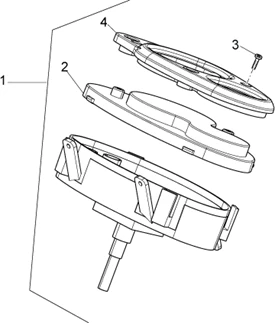

Chassis : 28.14 TABLEAU DE BORD
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/738/Sport_City_One_50_4T_2V_E2_2008-2010_28.14.PNG)
1 |
642118 - GROUPE INSTRUMENT Plus d'informationsQuantité requise : 1 |
||||||
|
1 |
COMPTEUR ORIGINE PIAGGIO APRILIA 50 SPORT CITY ONE 4T 2008>2010 -858367 Plus d'informationsQuantité requise : 1 |
||||||
|
1 |
890355 - TABLEAU DE BORD Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/6/5/img/67965.jpg)
2 |
VITRE DE TABLEAU DE BORD ORIGINE PIAGGIO 50 TYPHOON 2010>2016/APRILIA 50 SCARABEO 2010>2018 -642155 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/7/1/5/img/69715.jpg)
2 |
VITRE DE COMPTEUR ORIGINE PIAGGIO 50 TYPHOON 2011>/APRILIA 50 SR SUPERMOTARD 2011> -856440 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/7/9/8/img/69798.jpg)
3 |
VIS BTR COMPTEUR ORIGINE PIAGGIO 50 TYPHOON 2010>2016 -860535 Plus d'informationsQuantité requise : 2 |
||||||
|
4 |
853142 - ENCADREMENT Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/5/1/img/67951.jpg)
4 |
ENTOURAGE TABLEAU DE BORD ORIGINE PIAGGIO 50 TYPHOON 2011>2016 /APRILIA 50 SR MOTARD 2012>2014 -6420190090 Plus d'informationsQuantité requise : 1 |
