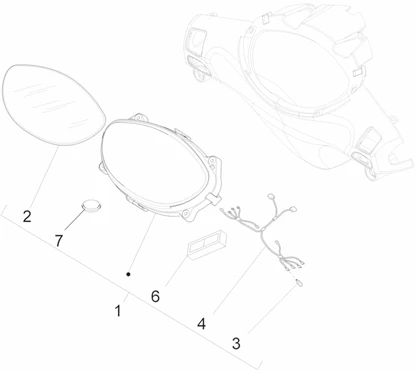

Guidon/direction : 03.02 GROUPE INSTRUMENTS - CRUSCOTTO
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/68/Fly_50_4T_2V_25-30Kmh_2012-2015_03.02.PNG)
1 |
641160 - GROUPE INSTR * Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/5/5/3/img/86553.jpg)
1 |
COMPTEUR ORIGINE PIAGGIO 50 FLY 4T 2012>2017 -643226 Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
643421 - VERRE COMPTEUR Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
643269 - AMPOULE 12V Plus d'informationsQuantité requise : 8 |
||||||
|
4 |
643251 - CABLES GROUPE INSTRUMENT Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/8/7/img/72187.jpg)
6 |
HORLOGE/MONTRE ORIGINE PIAGGIO 50-125 VESPA LX, VESPA-S, LIBERTY, 125-250-300 VESPA GTS, X7, TRIPORTEUR APE 50/APRILIA 125-250-300-400-500 ATLANTIC, 125 SCARABEO/GILERA 50 STAKER -AP8212406 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/2/1/4/7/img/92147.jpg)
6 |
HORLOGE ORIGINE PIAGGIO 50-125 FLY 2012>2015 -680132 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/9/7/0/img/66970.jpg)
7 |
PILE HORLOGE ORIGINE PIAGGIO 50-125 VESPA LX, VESPA-S, FLY, LIBERTY, 125-250-300 VESPA GTS, 125-250 X7, 50 TYPHOON 1998>2004/GILERA 50 STALKER -498342 Plus d'informationsQuantité requise : 1 |
