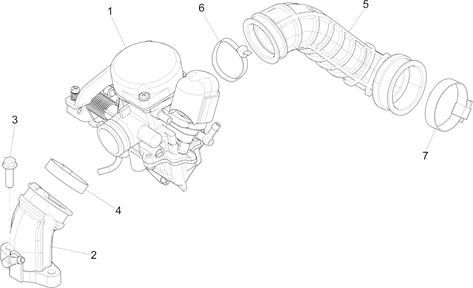

Moteur : 01.39 CARBURATEUR COMPLET - RACCORD D'ADMISSION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/827/FLY_50_4T_2V_2013_-2015_(EMEA)_01.39.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/8/7/img/73187.jpg)
1 |
CARBURATEUR ORIGINE PIAGGIO 50 FLY 4T, LIBERTY 4T, ZIP 4T, VESPA LX 4T, VESPA S 4T/APRILIA 50 SPORT-CITY 4T, SCARABEO 4T -CM141914 Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/7/4/img/69374.jpg)
2 |
RACCORD ADMISSION ORIGINE PIAGGIO 50 ZIP 4T 2006>, FLY 4T 2005>, LIBERTY 4T 2006>, VESPA LX 4T 2005>/APRILIA 50 SPORT-CITY 2008> -845946 Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/7/img/65447.jpg)
3 |
VIS BRIDE TH (6X20) ORIGINE PIAGGIO COMMUN A LA GAMME -018639 Plus d'informationsQuantité requise : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/3/3/2/img/75332.jpg)
4 |
COLLIER SERRAGE TUBE 32-50 ORIGINE PIAGGIO COMMUN A LA GAMME -1A000833 Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/1/2/4/img/149124.jpg)
4 |
COLLIER DE SERRAGE AVEC VIS SANS FIN ORIGINE PIAGGIO COMMUN A LA GAMME -1A006280 Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/5/2/img/69352.jpg)
5 |
MANCHON DE CARBURATEUR ORIGINE PIAGGIO 50 4T FLY, LIBERTY 2017< -845489 Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
6 |
COLLIER DE SERRAGE NYLON TYPE RILSAN 4,8X270MM ORIGINE PIAGGIO COMMUN A LA GAMME -257134 Plus d'informationsQuantité requise : 1 |
|||||||||
|
7 |
COLLIER DE SERRAGE AVEC VIS SANS FIN ORIGINE PIAGGIO COMMUN A LA GAMME -1A006280 Plus d'informationsQuantité requise : 1 |
|||||||||
|
7 |
COLLIER SERRAGE TUBE 32-50 ORIGINE PIAGGIO COMMUN A LA GAMME -1A000833 Plus d'informationsQuantité requise : 1 |
|||||||||
