Eclatés de véhicule - PIAGGIO FLY 150 4T 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

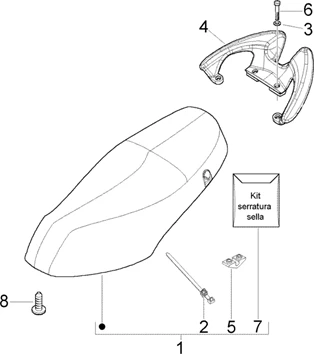

Châssis : T33 SELLE-POIGNÉE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/360/Fly_150_4T_1998-2005_T33.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/6/6/9/img/67669.jpg)
1 |
SELLE ORIGINE PIAGGIO 50-125 FLY 2005>2011 -6219790012 Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/7/img/66307.jpg)
2 |
COLLIER ORIGINE PIAGGIO COMMUN A LA GAMME -298729 Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
3 |
RONDELLE PLATE (8,4X15X1,5) ORIGINE PIAGGIO COMMUN A LA GAMME -003058 Plus d'informationsQuantité requise : 4 |
|||||||||
4 |
621994000D - POIGNEE ARR Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/9/4/img/66294.jpg)
5 |
PONTET DOIGT DE SERRURE ORIGINE PIAGGIO COMMUN A LA GAMME -296743 Plus d'informationsQuantité requise : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/6/6/img/67066.jpg)
6 |
VIS BTR TETE BOMBEE (8X25) ORIGINE PIAGGIO COMMUN A LA GAMME -564606 Plus d'informationsQuantité requise : 4 |
|||||||||
|
7 |
497451 - KIT SERRURE * Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/3/img/66043.jpg)
8 |
VIS CRUCIFORME (6X20) ORIGINE PIAGGIO COMMUN A LA GAMME -259830 Plus d'informationsQuantité requise : 2 |
|||||||||
