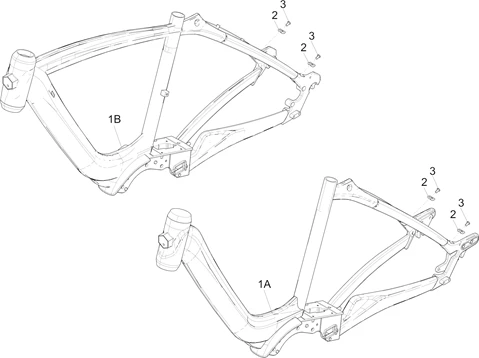

Châssis - parties plastiques - carrosseries : 02.01 CHÂSSIS/COQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/765/Wi-Bike_Uni_Mech_Comfort_2016_02.01.PNG)
Search
1A |
CHASSIS |
||||||
|
1A |
CHASSIS |
||||||
|
1A |
CHASSIS |
||||||
|
1B |
CHASSIS |
||||||
|
1B |
CHASSIS |
||||||
|
2 |
BOUCHON |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/4/img/71934.jpg)
3 |
SCREW - M5X10 "PIAGGIO GENUINE PARTS" COMMON TO THE RANGE -AP8152267 More informationQuantity required : 2 |
||||||
|
3 |
SCREW - M5X10 "PIAGGIO GENUINE PARTS" COMMON TO THE RANGE -AP8152267 More informationQuantity required : 2 |
