Vehicle Exploded View - PIAGGIO WI-BIKE 0 Uni Deore Comfort 2016
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

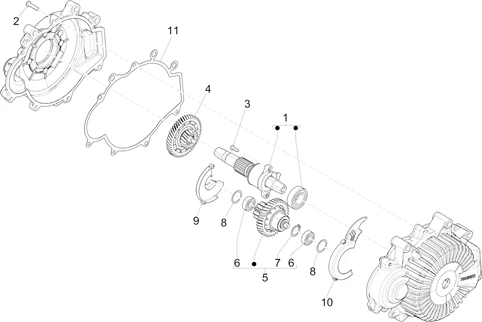

Moteur : 01.04 TRANSMISSION COMPLÈTE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/764/Wi-Bike_Uni_Deore_Comfort_2016_01.04.PNG)
1 |
AXE PEDALIER |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/3/3/img/72733.jpg)
2 |
B016808 - VIS M5X20 More informationQuantity required : 6 |
||||||
|
2 |
B016808 - VIS M5X20 More informationQuantity required : 6 |
||||||
|
3 |
1A003444 - VIS More informationQuantity required : 2 |
||||||
|
4 |
ENGRENAGE 1° |
||||||
|
5 |
ARBRE DE RÉFÉRENCE 2° |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/3/6/img/66736.jpg)
6 |
487392 - ROULEMENT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/1/4/img/63814.jpg)
7 |
CIRCLIPS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -006416 More informationQuantity required : 1 |
||||||
|
8 |
RONDELLE |
||||||
|
9 |
COQUE SUPERIEUR |
||||||
|
10 |
COQUE INFÉRIEURE |
||||||
|
11 |
JOINT CARTER |
