Vehicle Exploded View - PIAGGIO WI-BIKE 0 Mas Mech Active 2016
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

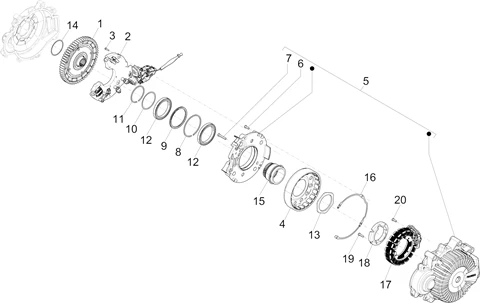

Moteur : 01.03 VOLANT MAGNETIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/763/Wi-Bike_Mas_Mech_Active_2016_01.03.PNG)
1 |
ROUE LIBRE |
||||||
|
2 |
SUPPORT |
||||||
|
3 |
615795 - VIS More informationQuantity required : 4 |
||||||
|
4 |
ROTOR ELECTR. |
||||||
|
5 |
SUPPORT |
||||||
|
6 |
1A003444 - VIS More informationQuantity required : 3 |
||||||
|
7 |
VIS |
||||||
|
8 |
Anneau élastique |
||||||
|
9 |
JOINT |
||||||
|
10 |
RESSORT |
||||||
|
11 |
Anneau élastique |
||||||
|
12 |
Roulement |
||||||
|
13 |
DOUILLE |
||||||
|
14 |
RONDELLE |
||||||
|
15 |
ENGRENAGE |
||||||
|
16 |
Joint |
||||||
|
17 |
Stator complet |
||||||
|
18 |
ECRAN MAGNETIQUE |
||||||
|
19 |
VIS |
||||||
|
20 |
1A003444 - VIS More informationQuantity required : 2 |
