Vehicle Exploded View - PIAGGIO WI-BIKE 0 Enel-2016 PIAGGIO

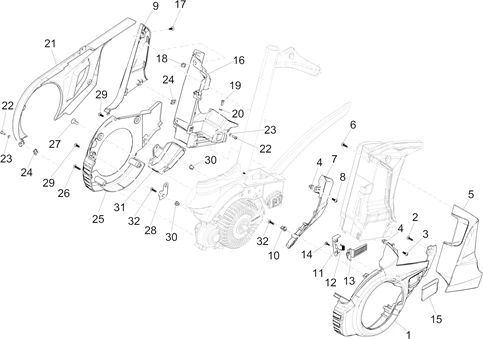

Châssis - parties plastiques - carrosseries : 02.03 PROTECTION CENTRALE
Protection centrale
Search
COUVERCLE MOTEUR

1
P2R reference P2R reference
Maker reference Maker reference 1B002255000NL

COUVERCLE MOTEUR

SCREW - FOR FAIRINGS FASTENING (4X16) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM180701

2
P2R reference P2R reference 73372
Maker reference Maker reference CM180701

SCREW - FOR FAIRINGS FASTENING (4X16) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM180701

More information

Quantity required : 2

SCREW - SELF DRILLING (M4,2X13) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -CM178603

3
P2R reference P2R reference 73358
Maker reference Maker reference CM178603

SCREW - SELF DRILLING (M4,2X13) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -CM178603

More information

Quantity required : 1

EXPANSION PLUG "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -157716

4
P2R reference P2R reference 109019
Maker reference Maker reference 157716

EXPANSION PLUG "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -157716

More information

Quantity required : 2

Couvercle gau.

5
P2R reference P2R reference
Maker reference Maker reference 1B002259000NL

Couvercle gau.

SCREW - FOR FAIRINGS FASTENING (4X16) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM180701

6
P2R reference P2R reference 73372
Maker reference Maker reference CM180701

SCREW - FOR FAIRINGS FASTENING (4X16) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM180701

More information

Quantity required : 4

COUVERCLE

7
P2R reference P2R reference
Maker reference Maker reference 1B002260

COUVERCLE

SCREW - SELF DRILLING (M4,2X13) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -CM178603

8
P2R reference P2R reference 73358
Maker reference Maker reference CM178603

SCREW - SELF DRILLING (M4,2X13) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -CM178603

More information

Quantity required : 1

Couvercle drt.

9
P2R reference P2R reference
Maker reference Maker reference 1B002258000NL

Couvercle drt.

CLIP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -180859

10
P2R reference P2R reference 73404
Maker reference Maker reference D9004468091

CLIP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -180859

More information

Quantity required : 1

SUPPORT CHARNIERE

11
P2R reference P2R reference
Maker reference Maker reference 1B002542

SUPPORT CHARNIERE

RESSORT

12
P2R reference P2R reference
Maker reference Maker reference 1B002541

RESSORT

CHARNIERE

13
P2R reference P2R reference
Maker reference Maker reference 1B002540

CHARNIERE

SCREW - FOR FAIRINGS FASTENING (3,5x13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -297498

14
P2R reference P2R reference 66301
Maker reference Maker reference 297498

SCREW - FOR FAIRINGS FASTENING (3,5X13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -297498

More information

Quantity required : 2

ABATTANT BATTERIE

15
P2R reference P2R reference
Maker reference Maker reference 1B002381000NL

ABATTANT BATTERIE

SUPPORT BATTERIE

16
P2R reference P2R reference
Maker reference Maker reference 1A002886

SUPPORT BATTERIE

SCREW - SELF DRILLING (M4,2X13) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -CM178603

17
P2R reference P2R reference 73358
Maker reference Maker reference CM178603

SCREW - SELF DRILLING (M4,2X13) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -CM178603

More information

Quantity required : 2

EXPANSION PLUG "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -157716

18
P2R reference P2R reference 109019
Maker reference Maker reference 157716

EXPANSION PLUG "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -157716

More information

Quantity required : 2

VIS

19
P2R reference P2R reference
Maker reference Maker reference 1A004525

VIS

003054 - RONDELLE S00305400

20
P2R reference P2R reference 63775
Maker reference Maker reference 0030545

003054 - RONDELLE S00305400

More information

Quantity required : 4

COUVERCLE DE CHAINE

21
P2R reference P2R reference
Maker reference Maker reference 1B002257000NL

COUVERCLE DE CHAINE

VIS

22
P2R reference P2R reference
Maker reference Maker reference 1A004525

VIS

003054 - RONDELLE S00305400

23
P2R reference P2R reference 63775
Maker reference Maker reference 0030545

003054 - RONDELLE S00305400

More information

Quantity required : 3

AP8102381 - CLIP

24
P2R reference P2R reference 71177
Maker reference Maker reference AP8102381

AP8102381 - CLIP

More information

Quantity required : 3

COUVERCLE MOTEUR

25
P2R reference P2R reference
Maker reference Maker reference 1B002256000NL

COUVERCLE MOTEUR

CM180702 - VIS

26
P2R reference P2R reference 96310
Maker reference Maker reference CM180702

CM180702 - VIS

More information

Quantity required : 2

CM179301 - VIS

27
P2R reference P2R reference 73366
Maker reference Maker reference CM179301

CM179301 - VIS

More information

Quantity required : 2

PLAQUE

28
P2R reference P2R reference
Maker reference Maker reference 1B002450

PLAQUE

SCREW - SELF DRILLING (M4,2X13) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -CM178603

29
P2R reference P2R reference 73358
Maker reference Maker reference CM178603

SCREW - SELF DRILLING (M4,2X13) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -CM178603

More information

Quantity required : 2

AP8102381 - CLIP

30
P2R reference P2R reference 71177
Maker reference Maker reference AP8102381

AP8102381 - CLIP

More information

Quantity required : 1

COUVERCLE

31
P2R reference P2R reference
Maker reference Maker reference 1B002388

COUVERCLE

CM180702 - VIS

32
P2R reference P2R reference 96310
Maker reference Maker reference CM180702

CM180702 - VIS

More information

Quantity required : 2
