Vehicle Exploded View - VESPA VESPA GTS 125 Vespa Super GTS 125 4T ie ABS- NOABS E3 2009-2016
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

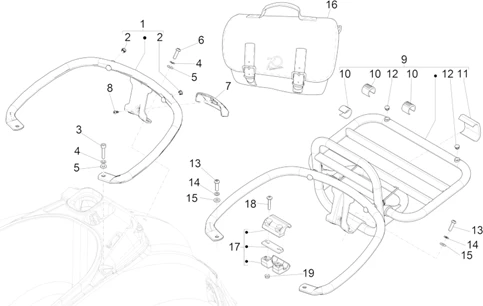

Châssis - parties plastiques - carrosseries : 02.44 PORTE-BAGAGES ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1336/Vespa_Super_GTS_125_4T_ie_ABS-_NOABS_E3_2009-2016_02.44.png)
1 |
GRIP PASSENGER OEM PIAGGIO 125-250-300 VESPA GTS-1B000654 More informationQuantity required : 1 |
|||||||||
|
2 |
623561-CAP GRIP SEAT More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/3/2/9/img/78329.jpg)
3 |
SCREW BTR (6X30) OEM PIAGGIO COMMON A LA RANGE-319538 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/5/img/65345.jpg)
4 |
WASHER EVENTAIL (6, 6X11X0) OEM PIAGGO COMMON A LA RANGE-012533 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/2/img/65362.jpg)
5 |
WASHER PLATE (6. 4X13X1. 5) OEM PIAGGIO COMMON A LA RANGE-013777 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/7/4/9/img/67749.jpg)
6 |
SCREW TORX (6X20) OEM PIAGGIO COMMON A LA RANGE-623920 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/4/8/0/1/img/84801.jpg)
7 |
COVER/COVER SEAT CHROME OEM PIAGGIO 125-300 GTS 2009 > 2018-623336 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/7/4/img/66074.jpg)
8 |
SCREW AUTOTARAUDEUSE (4X13) OEM PIAGGIO COMMON A TOUTE LA RANGE-268596 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/9/0/0/img/139900.jpg)
9 |
REAR LUGGAGE RACK "PIAGGIO GENUINE PART" 125-250-300 VESPA GTS 2007>2016 -1B002106 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/4/6/2/4/img/84624.jpg)
10 |
BUFFER DE DOOR LUGGAGE OEM PIAGGIO COMMON A LA RANGE VESPA-622554 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/4/8/5/8/img/84858.jpg)
11 |
ARRET LID DE DOOR LUGGAGE REAR OEM PIAGGIO 125-300 GTS 2007 >-623576 More informationQuantity required : 1 |
|||||||||
|
12 |
623561-CAP GRIP SEAT More informationQuantity required : 2 |
|||||||||
|
13 |
SCREW TORX (6X20) OEM PIAGGIO COMMON A LA RANGE-623920 More informationQuantity required : 4 |
|||||||||
|
14 |
WASHER EVENTAIL (6, 6X11X0) OEM PIAGGO COMMON A LA RANGE-012533 More informationQuantity required : 4 |
|||||||||
|
15 |
WASHER PLATE (6. 4X13X1. 5) OEM PIAGGIO COMMON A LA RANGE-013777 More informationQuantity required : 4 |
|||||||||
|
16 |
1B003667-KIT SACS More informationQuantity required : 1 |
|||||||||
|
17 |
1B003961-KIT REVISION More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/2/9/1/img/96291.jpg)
18 |
SCREW TORX (6X35) HEAD BOMBEE OEM PIAGGIO COMMON A LA RANGE-CM179307 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/4/1/img/65941.jpg)
19 |
NUT FLANGE (6) OEM PIAGGIO COMMON A LA RANGE-219277 More informationQuantity required : 2 |
|||||||||
