Vehicle Exploded View - VESPA VESPA SPRINT 125 Vespa Sprint S 125 E5+ 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

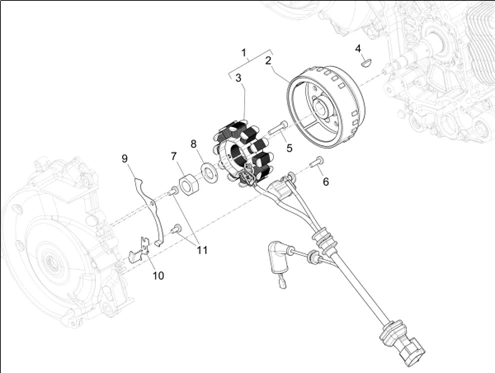

Moteur : 01.21 VOLANT MAGNETIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1217/Vespa_Sprint_S_125_E5_2024_EMEA_01.21.png)
1 |
1A0065954 - VOLANT MAGNETIQUE COMPLET More informationQuantity required : 1 |
||||||
|
2 |
1A006480-ROTOR COMPLETE WITH BUSE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/2/1/6/3/img/92163.jpg)
3 |
STATOR OEM PIAGGIO 125 LIBERTY, PRIMAVERA, SPRINT 2016 > 2020-680205 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/7/4/img/63674.jpg)
4 |
CLAVETTE IGNITION OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-000097 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/1/6/8/img/127168.jpg)
5 |
SCREW BTR (5X25) WITH BRAKE NET THREAD OEM PIAGGIO COMMON A LA RANGE-1A003115 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/1/6/7/img/127167.jpg)
6 |
SCREW CRUCIFORME (5X16) OEM PIAGGIO COMMON A LA RANGE-1A003109 More informationQuantity required : 2 |
||||||
|
7 |
841047-NUT More informationQuantity required : 1 |
||||||
|
8 |
B018464-WASHER More informationQuantity required : 1 |
||||||
|
9 |
B018105-PLATE More informationQuantity required : 1 |
||||||
|
10 |
B018106-PLATE More informationQuantity required : 1 |
||||||
|
11 |
SCREW CRUCIFORME (5X10) OEM PIAGGIO COMMON A LA RANGE-1A003111 More informationQuantity required : 2 |
