Vehicle Exploded View - VESPA VESPA SPRINT 125 4T 3V ie 2014-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

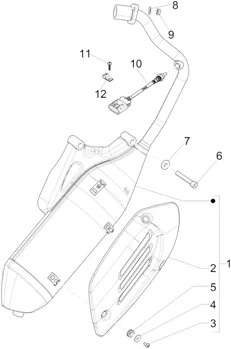

Moteur : 01.42 SILENCIEUX
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/229/Vespa_Sprint_125_4T_3V_ie_2014-2015_01.42.PNG)
1 |
1A0045955-COMPLETE D'ECHAPPEMENT DE PROTECTOR More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/8/5/4/img/94854.jpg)
1 |
EXHAUST -B0191355 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/8/4/7/img/94847.jpg)
2 |
PROTECTOR/SHEET METAL DE SILENCER EXHAUST OEM PIAGGIO 50-125 VESPA PRIMAVERA 2013 >, SPRINT 2014 >-B018955 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/4/img/71934.jpg)
3 |
SCREW BTR HEAD BOMBEE (5X12) OEM PIAGGIO COMMON A LA RANGE-AP8152267 More informationQuantity required : 3 |
|||||||||
|
3 |
SCREW BTR HEAD BOMBEE (5X12) OEM PIAGGIO COMMON A LA RANGE-AP8152267 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/3/0/1/1/img/93011.jpg)
4 |
WASHER PLATE (D5) OEM PIAGGIO COMMON A LA RANGE-844927 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/0/4/img/69204.jpg)
5 |
RUBBER GUIDE CABLE OEM PIAGGIO COMMON A LA RANGE-841782 More informationQuantity required : 3 |
|||||||||
|
6 |
872997-SCREW M8X55 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/8/8/img/68488.jpg)
7 |
WASHER PLATE (8. 3X18X1. 5) OEM PIAGGIO COMMON A LA RANGE-709012 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/0/7/img/69107.jpg)
8 |
WASHER (8, 2X16X2, 2) OEM PIAGGIO COMMON A TOUTE LA RANGE-834187 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/0/9/img/66509.jpg)
9 |
NUT EXHAUST ON CYLINDER HEAD MAXI SCOOTER 125-250 X8, X-EVO, VESPA GTS, MP3, 125 LIBERTY, VESPA LX, PRIMAVERA/GILERA 125-250-300 NEXUS/APRILIA 125-250-300 ATLANTIC-436947 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/9/0/1/5/img/219015.jpg)
10 |
SONDE LAMDA OEM PIAGGIO 125 FLY, LIBERTY, YOURBAN, VESPA GTS, VESPA LX, PRIMAVERA, VESPA-S, SPRINT, 300 YOURBAN/APRILIA 125 RS-4, SX, RX, TUONO (ENGINE INJECTION 3 SOUPAPES)-1D000353 More informationQuantity required : 1 |
|||||||||
|
10 |
LAMBDA SENSOR "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125 CC ( 3 VALVES INJECTED ENGINE) -1D0003745 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/7/2/img/73372.jpg)
11 |
SCREW TORX (4X16) TARAUD FAIRING OEM PIAGGIO COMMON A LA RANGE-CM180701 More informationQuantity required : 1 |
|||||||||
|
12 |
643451-CLAMP. More informationQuantity required : 1 |
|||||||||
