Vehicle Exploded View - VESPA VESPA S 150 4T 2V IE E3 College 2009-2011
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

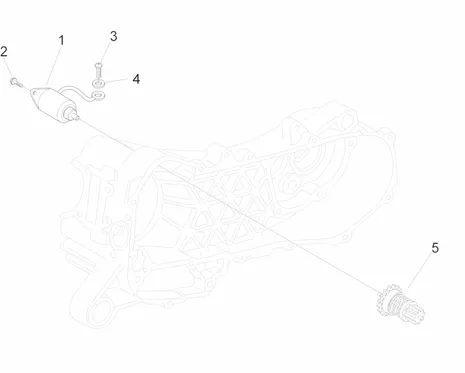

Moteur : 01.20 DÉMARRAGE - DÉMARRAGE ÉLECTRIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/715/Vespa_S_150_4T_2V_IE_E3_College_2009-2011_01.20.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/8/7/img/68587.jpg)
1 |
STARTER MOTOR MAXI SCOOTER OEM PIAGGIO 125 MP3 2007 >, BEVERLY 2005 >, X8 2004 >, X9 2003 >, X10 2012 >, X-EVO 2007 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 >, RUNNER 4T 2005 >/APRILIA 125 ATLANTIC-82611R5 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/2/img/65642.jpg)
2 |
SCREW TH (6X22) OEM PIAGGIO COMMON A LA RANGE-031091 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/5/9/img/70959.jpg)
3 |
SCREW FLANGE TH (6X10) OEM PIAGGIO COMMON A LA RANGE-969296 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/4/1/img/63841.jpg)
4 |
WASHER ELASTIC (6. 4X12X0. 5) OEM PIAGGIO COMMON A LA RANGE-006976 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/8/8/img/68588.jpg)
5 |
LANCEUR/RENVOI DE STARTER MOTOR MAXI SCOOTER OEM PIAGGIO 125 MP3 2007 >, BEVERLY 2005 >, X8 2004 >, X9 2003 >, X10 2012 >, X-EVO 2007 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 >, RUNNER 4T 2005 >-82612R More informationQuantity required : 1 |
