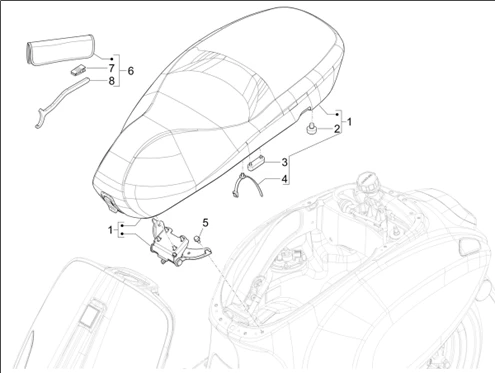

Châssis - parties plastiques - carrosseries : 02.39 SELLE/SIEGES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1325/Vespa_Primavera_50_E5_Officina_8_2025_EMEA_02.39.png)
1 |
1B0130624-SEAT WITH CHARNIERE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/5/7/img/67157.jpg)
2 |
BUFFER DE SEAT OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-577492 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/9/2/img/66292.jpg)
3 |
BUFFER SEAT OEM PIAGGIO COMMIN A LA RANGE-296456 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/7/img/66307.jpg)
4 |
CLAMP OEM PIAGGIO COMMON A LA RANGE-298729 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/0/6/img/72706.jpg)
5 |
SCREW FLANGE TH (6X14) OEM PIAGGIO COMMON A LA RANGE-B016426 More informationQuantity required : 4 |
||||||
|
6 |
1C000590-TROUSSE OUTILS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/3/7/7/img/140377.jpg)
7 |
EXTRACTEUR/PINCE FOR FUSIBLES OEM PIAGGIO COMMON A LA RANGE-584654 More informationQuantity required : 1 |
||||||
|
8 |
648069-CLE SHOCK ABSORBER More informationQuantity required : 1 |
