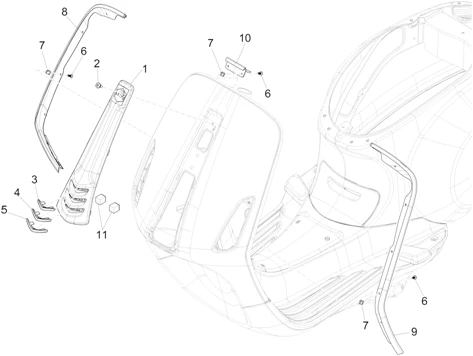

Châssis - parties plastiques - carrosseries : 02.26 TABLIER AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/344/Vespa_Primavera_50_2T_2013-2015_02.26.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/4/8/5/img/75485_20260429163155.jpg)
1 |
COVER COLONNE DE STEERING (SERIE A) OEM PIAGGIO 50-125 VESPA PRIMAVERA, SPRINT 2013 > WHITE 544-1B000203000BR More informationQuantity required : 1 |
||||||
1 |
1B000203000DE-COVER DE STEERING More informationQuantity required : 1 |
||||||
|
1 |
COVER DE STEERING OEM PIAGGIO 50-125 VESPA PRIMAVERA MARRON 129/A-1B000203600MD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/4/9/1/img/75491_20260429163152.jpg)
1 |
COVER COLONNE DE STEERING (SERIE A) OEM PIAGGIO 50-125 VESPA PRIMAVERA, SPRINT 2013 > RED 894-1B000203000R7 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/4/9/2/img/75492.jpg)
1 |
COVER COLONNE DE STEERING (SERIE A) OEM PIAGGIO 50-125 VESPA PRIMAVERA, SPRINT 2013 > BLACK 98/A-1B000203000XN2 More informationQuantity required : 1 |
||||||
|
1 |
1B002200000HH - COUVERCLE DE DIRECTION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/4/8/2/img/75482_20260429163146.jpg)
1 |
COVER COLONNE DE STEERING (SERIE A) OEM PIAGGIO 50-125 VESPA PRIMAVERA, SPRINT 2013 > UNPAINTED-1B000203 More informationQuantity required : 1 |
||||||
|
1 |
1B000203000AZ - COUVERCLE DE DIRECTION More informationQuantity required : 1 |
||||||
|
1 |
COVER DE STEERING OEM PIAGGIO 50-125 VESPA PRIMAVERA MARRON 129/A-1B000203600MD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/5/img/73365.jpg)
2 |
SCREW TORX (6X16) WITH EPAULEMENT OEM PIAGGIO COMMON A LA RANGE-CM179202 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/5/1/9/img/75519.jpg)
3 |
GRAPHIC/LOGO DE FRONT PANEL FRONT OEM PIAGGIO 50-125 VESPA PRIMAVERA 2013 >, SPRINT 2014 >-1B000272 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/5/2/0/img/75520.jpg)
4 |
GRAPHIC/LOGO DE FRONT PANEL FRONT OEM PIAGGIO 50-125 VESPA PRIMAVERA 2013 >, SPRINT 2014 >-1B000273 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/5/2/1/img/75521.jpg)
5 |
GRAPHIC/LOGO DE FRONT PANEL FRONT OEM PIAGGIO 50-125 VESPA PRIMAVERA 2013 >, SPRINT 2014 >-1B000274 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/5/8/img/73358.jpg)
6 |
SCREW TORX (4, 2X13) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178603 More informationQuantity required : 14 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/3/2/img/65832.jpg)
7 |
AGRAPHE/CHEVILLE A EXPANSION OEM PIAGGIO COMMON A TOUTE LE RANGE-199190 More informationQuantity required : 14 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/1/3/6/8/img/91368_20260413172131.jpg)
8 |
BORDURE DE LEG SHIELD FRONT RIGHT CHROME OEM PIAGGIO VESPA 50-125 PRIMAVERA 2013 >, SPRINT 2014 >-673639 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/1/3/6/7/img/91367_20260413172128.jpg)
9 |
BORDURE DE LEG SHIELD FRONT LEFT CHROME OEM PIAGGIO 50-125 VESPA SPRINT 2014 >, PRIMAVERA 2013 >-673638 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/1/5/7/7/img/91577.jpg)
10 |
BORDURE DE LEG SHIELD CENTRE CHROME OEM PIAGGIO 50-125 VESPA SPRINT 2014 >, PRIMAVERA 2013 >-674145 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/8/2/0/img/75820.jpg)
11 |
1B001113-RUBBER MOUNT More informationQuantity required : 2 |
