Vehicle Exploded View - VESPA VESPA PRIMAVERA 125 E5+ Officina 8 2025 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

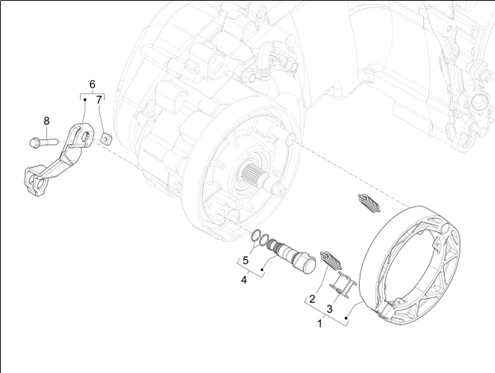

Moteur : 01.35 FREIN POSTERIEUR - MÂCHOIRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1324/Vespa_Primavera_125_E5_Officina_8_2025_EMEA_01.35.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/2/4/img/67024.jpg)
1 |
MACHOIRES OF BRAKE REAR OEM PIAGGIO 125 FLY, LIBERTY, X8 STREET, VESPA PRIMAVERA, VESPA SPRINT/APRILIA 125 MOJITO, SPORT-CITY (SET)-56294R5 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/0/1/7/img/68017.jpg)
2 |
SPRING BRAKE SHOE SET OEM PIAGGIO COMMON A LA RANGE SCOOTER 50-125-647384 More informationQuantity required : 2 |
||||||
3 |
647383-PLATE More informationQuantity required : 2 |
||||||
|
4 |
B0176035-LEVER DU BRAKE More informationQuantity required : 1 |
||||||
|
5 |
B016477-GASKET. More informationQuantity required : 2 |
||||||
|
6 |
1C004081 REAR BRAKE LEVER WITH I P More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/9/1/img/68791.jpg)
7 |
NUT CARRE (D6) OEM PIAGGIO COMMON A LA RANGE-828862 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/6/7/img/66367.jpg)
8 |
SCREW FLANGE TH (6X35) OEM PIAGGIO COMMON A LA RANGE-414838 More informationQuantity required : 1 |
