Vehicle Exploded View - VESPA VESPA LXV 50 2T Navy 2007-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

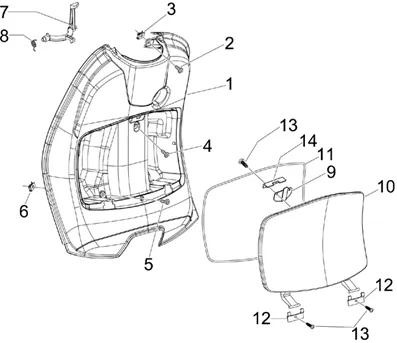

Châssis - parties plastiques - carrosseries : 02.30 COFFRE AVANT - CONTRE-TABLIER
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/719/Vespa_LXV_50_2T_Navy_2007-2008_02.30.PNG)
1 |
622179 - COFFRE AV. More informationQuantity required : 1 |
|||||||||
|
1 |
62217950DE - COFFRE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/3/img/66043.jpg)
2 |
SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259830 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
3 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
4 |
SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249 More informationQuantity required : 1 |
|||||||||
|
5 |
SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249 More informationQuantity required : 2 |
|||||||||
|
6 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/8/1/img/66281.jpg)
7 |
CROCHET OUVERTURE HATCH FRONT OEM PIAGGIO 50-125 FLY, LIBERTY, VESPA LX 2006 >-295528 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/3/img/66023.jpg)
8 |
SPRING DE LEVER DE UNDERSEAT COMPARTMENT FRONT OEM PIAGGIO 50-125 FLY, LIBERTY, VESPA LX-257617 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/9/1/img/67091.jpg)
9 |
PLATE LATCH DOOR DE UNDERSEAT COMPARTMENT FRONT OEM PIAGGIO 50-125 FLY, LIBERTY, VESPA LX-573057 More informationQuantity required : 1 |
|||||||||
|
10 |
62211550DE - PORTE COFFRE AV More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/9/8/img/66298.jpg)
11 |
GASKET DOOR DE UNDERSEAT COMPARTMENT FRONT OEM PIAGGIO 50-125 FLY, VESPA LX, PRIMAVERA 2013 >, VESPA SPRINT 2014 >, 125-250-500 X9, BEVERLY-297275 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/2/img/66022.jpg)
12 |
BRACKET MOUNTING DOOR DE UNDERSEAT COMPARTMENT OEM PIAGGIO COMMON A TOUTE LA RANGE-257614 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/1/img/66301.jpg)
13 |
SCREW OF FAIRING (3, 5X13) OEM PIAGGIO COMMON A TOUTE LA RANGE-297498 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/2/img/66002.jpg)
14 |
BRACKET LATCH DOOR DE UNDERSEAT COMPARTMENT OEM PIAGGIO COMMON A TOUTE LA RANGE-252420 More informationQuantity required : 1 |
|||||||||
