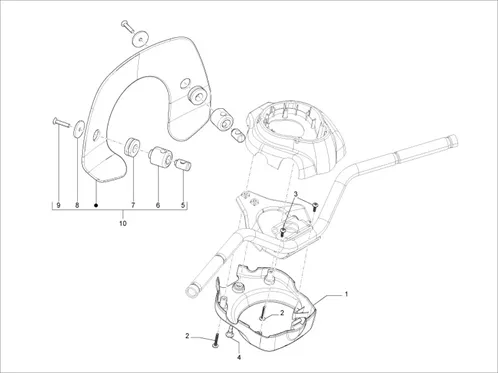

Vehicle Exploded View - VESPA VESPA LXV 125 4T 2V ie NOABS E3 2010-2013 (EMEA) VESPA

Guidon/direction : 03.01 COUVERTURES GUIDON
Couvertures guidon
Search
62474300M4 - CACHE DIRECTION

1
P2R reference P2R reference 85418
Maker reference Maker reference 62474300M4

62474300M4-COVER STEERING

More information

Quantity required : 1

62474300YR1 - CACHE DIRECTION

1
P2R reference P2R reference 85423
Maker reference Maker reference 62474300YR1

62474300YR1 - CACHE DIRECTION

More information

Quantity required : 1

624743 - COUVRE GUIDON

1
P2R reference P2R reference 85415
Maker reference Maker reference 624743

624743-HANDLEBAR COVER

More information

Quantity required : 1

62474300M9 - CACHE DIRECTION

1
P2R reference P2R reference 85420
Maker reference Maker reference 62474300M9

62474300M9-COVER STEERING

More information

Quantity required : 1

62474300M5 - CACHE DIRECTION

1
P2R reference P2R reference 85419
Maker reference Maker reference 62474300M5

62474300M5-COVER STEERING

More information

Quantity required : 1

62474300VG - CACHE DIRECTION

1
P2R reference P2R reference 85422
Maker reference Maker reference 62474300VG

62474300VG-COVER STEERING

More information

Quantity required : 1

653125 - VIS

2
P2R reference P2R reference 87567
Maker reference Maker reference 653125

653125-SCREW

More information

Quantity required : 2

SCREW AUTOTARAUDEUSE (3. 85X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-270793

3
P2R reference P2R reference 66092
Maker reference Maker reference 270793

SCREW AUTOTARAUDEUSE (3. 85X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-270793

More information

Quantity required : 2

SCREW FAIRING/CARROSSERIE OEM PIGGIO COMMON A LA RANGE-259577

4
P2R reference P2R reference 66038
Maker reference Maker reference 259577

SCREW FAIRING/CARROSSERIE OEM PIGGIO COMMON A LA RANGE-259577

More information

Quantity required : 2

269781 - MOYEU

5
P2R reference P2R reference 77265
Maker reference Maker reference 269781

269781-HUB

More information

Quantity required : 1

MOUNTING INFERIEURE DE WINDSCREEN OEM PIAGGIO 50-125 PTT, CORPORATE 2007 > 2019-269785

6
P2R reference P2R reference 77266
Maker reference Maker reference 269785

MOUNTING INFERIEURE DE WINDSCREEN OEM PIAGGIO 50-125 PTT, CORPORATE 2007 > 2019-269785

More information

Quantity required : 1

RUBBER/RUBBER MOUNT (15 X32 X13) PROTECTOR PRISE OEM PIAGGIO COMMON A LA RANGE-560173

7
P2R reference P2R reference 66993
Maker reference Maker reference 560173

RUBBER/RUBBER MOUNT (15 X32 X13) PROTECTOR PRISE OEM PIAGGIO COMMON A LA RANGE-560173

More information

Quantity required : 2

WASHER CHROME DE WINDSCREEN (6X32) OEM PIAGGIO COMMON A LA RANGE-562366

8
P2R reference P2R reference 79844
Maker reference Maker reference 562366

WASHER CHROME DE WINDSCREEN (6X32) OEM PIAGGIO COMMON A LA RANGE-562366

More information

Quantity required : 1

SCREW TORX (6X30) OEM PIAGGIO COMMON A LA RANGE-1B006381

9
P2R reference P2R reference 177152
Maker reference Maker reference 1B006381

SCREW TORX (6X30) OEM PIAGGIO COMMON A LA RANGE-1B006381

More information

Quantity required : 2

SCREW TORX (6X30) OEM PIAGGIO COMMON A LA RANGE-1B006381

9
P2R reference P2R reference 177152
Maker reference Maker reference 255638

SCREW TORX (6X30) OEM PIAGGIO COMMON A LA RANGE-1B006381

More information

Quantity required : 2

WIND SCREEN "PIAGGIO GENUINE PART" 50-125 VESPA LXV -6249915-

10
P2R reference P2R reference 140426
Maker reference Maker reference 6249915

SAUTE VENT OEM PIAGGIO 50-125 VESPA LXV-6249915

More information

Quantity required : 1
