Vehicle Exploded View - VESPA VESPA LX 50 4T 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

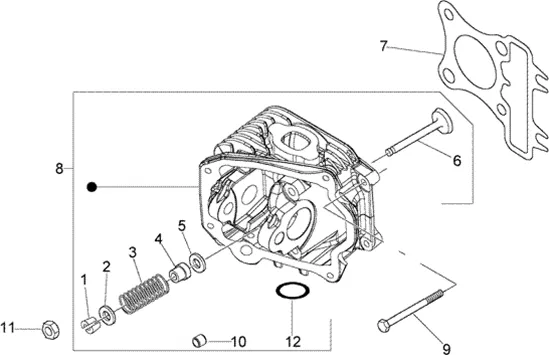

Moteur : T5 ENSEMBLE CULASSE-SOUPAPES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/704/Vespa_LX_50_4T_1998-2005_T5.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/5/2/img/66152.jpg)
1 |
HALF-LUNE/CLAVETTE DE VALVE OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-285846 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/5/2/img/70952.jpg)
2 |
WASHER DE SPRING CYLINDER HEAD OEM PIAGGIO COMMON A LA RANGE-969267 More informationQuantity required : 2 |
||||||
3 |
845782-SPRING More informationQuantity required : 2 |
||||||
|
3 |
969272-SPRING More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/9/3/img/66493.jpg)
4 |
GASKET/BUSH OF VALVE OEM PIAGGIO COMMON A LA RANGE-436438 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/2/2/img/66222.jpg)
5 |
COUPELLE INFERIEURE VALVE OEM PIAGGIO 50 4T ZIP, FLY, LIBERTY 2016 <-289420 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/4/5/img/70945.jpg)
6 |
VALVE INTAKE OEM PIAGGIO 50 ZIP 4T 2000 >, FLY 4T 2005 >, LIBERTY 4T 2006 >, PRIMAVERA 4T 2013 > VESPA LX 4T 2005 >, VESPA SPRINT 4T 2014 >/APRILIA 50 SCARABEO 4T, SPORT-CITY 4T-969238 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/4/6/img/70946.jpg)
6 |
VALVE EXHAUST OEM PIAGGIO 50 ZIP 4T 2000 >, FLY 4T 2005 >, LIBERTY 4T 2006 >, PRIMAVERA 4T 2013 > VESPA LX 4T 2005 >, VESPA SPRINT 4T 2014 >/APRILIA 50 SCARABEO 4T, SPORT-CITY 4T-969239 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/0/5/img/69005.jpg)
7 |
CYLINDER HEAD GASKET OEM PIAGGIO 50 FLY 4T, LIBERTY 4T, VEXPA LX 4T-832613 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/0/6/img/69006.jpg)
7 |
CYLINDER HEAD GASKET OEM PIAGGIO 50 4T LIBERTY, FLY, SCARABEO, LX 2009 <-832614 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/8/5/img/69385.jpg)
8 |
CYLINDER HEAD OEM PIAGGIO 50 FLY, LIBERTY, VESPA LX, PRIMAVERA, VESPA-S, SPRINT/APRILIA 50 SCARABEO, SPORT-CITY (2 SOUPAPES)-8461974 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/3/7/img/66337.jpg)
9 |
SCREW BTR (6X80) OEM PIAGGIO COMMON A LA RANGE-319242 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/6/img/72696.jpg)
10 |
BUSH DE CENTRAGE (9, 5X15) CASING OEM PIAGGIO COMMON ALA RANGE-B015956 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/4/0/img/70940.jpg)
11 |
NUT FLANGE (D6) DE CYLINDER HEAD OEM PIAGGIO COMMON A LA RANGE-969224 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/4/4/img/70944.jpg)
12 |
GASKET EXHAUST OEM PIAGGIO 50 FLY 4T, ZIP 4T, LIBERTY 4T, VESPA LX 4T, PRIMAVERA 4T, VESPA-S 4T-969236 More informationQuantity required : 1 |
