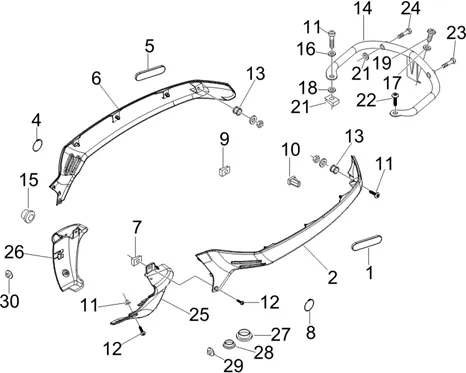

Vehicle Exploded View - VESPA VESPA LX 50 2T 2006-2009

	P2R reference	139413
	Maker reference	58231R5

CATADIOPTRE LATERAL OEM PIAGGIO 50 ZIP, VESPA LX, 50-125 LIBERTY, 250-300-400-500 MP3: GILERA 50-125 RUNNER-58231R5

	P2R reference	84696
	Maker reference	622901000L

622901000L-FAIRING

	P2R reference	84697
	Maker reference	622901000P

BAS BODY PANEL LEFT OEM PIAGGIO 50 VESPA LX 2006 >-622901000P

	P2R reference
	Maker reference	62290100E8

CARENAGE

	P2R reference	84698
	Maker reference	622902000L

622902000L - CARTER DX

	P2R reference
	Maker reference	62290200E8

CARTER DX

	P2R reference	84699
	Maker reference	622902000P

REAR RIGHT SIDE COVER (LOW PART) "PIAGGIO GENUINE PART" 50 VESPA LX 2006> -622902000P

	P2R reference	72926
	Maker reference	CM017410

NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410

	P2R reference	65832
	Maker reference	199190

AGRAPHE/CHEVILLE A EXPANSION OEM PIAGGIO COMMON A TOUTE LE RANGE-199190

	P2R reference	66035
	Maker reference	259349

SCREW AUTOTARAUDEUSE (4, 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259349

	P2R reference	66301
	Maker reference	297498

SCREW OF FAIRING (3, 5X13) OEM PIAGGIO COMMON A TOUTE LA RANGE-297498

	P2R reference	65850
	Maker reference	1B000888

BUFFER/SILENCBLOC DE FAIRING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-1B000888

	P2R reference	89655
	Maker reference	657109

GRIP PASSENGER OEM PIAGGIO 50-125 VESPA LX 2005 >-657109

	P2R reference	84855
	Maker reference	623561

623561-CAP GRIP SEAT

	P2R reference	65345
	Maker reference	0125335

WASHER EVENTAIL (6, 6X11X0) OEM PIAGGO COMMON A LA RANGE-012533

	P2R reference	65642
	Maker reference	0310915

SCREW TH (6X22) OEM PIAGGIO COMMON A LA RANGE-031091

	P2R reference	65664
	Maker reference	0783075

WASHER SPRING (6, 4X16X1) OEM PIAGGIO COMMON A LA RANGE-078307

	P2R reference	66009
	Maker reference	254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

	P2R reference	84390
	Maker reference	6221294087

6221294087 - COUVERTURE SPOILER GAU.

	P2R reference	84392
	Maker reference	62212940AA

62212940AA - COUVERTURE SPOILER GAU.

	P2R reference	84393
	Maker reference	62212940AF

62212940AF - COUVERTURE SPOILER GAU.

	P2R reference	84394
	Maker reference	62212940AH

62212940AH-COVER SPOILER GAU.

	P2R reference	84396
	Maker reference	62212940BM

62212940BM - COUVERTURE SPOILER GAU.

	P2R reference	84397
	Maker reference	62212940BR

62212940BR - COUVERTURE SPOILER GAU.

	P2R reference	84399
	Maker reference	62212940DE

62212940DE - COUVERTURE SPOILER GAU.

	P2R reference	84403
	Maker reference	62212940EU

62212940EU-COVER SPOILER GAU.

	P2R reference	84405
	Maker reference	62212940F2

62212940F2 - COUVERTURE SPOILER GAU.

	P2R reference	84407
	Maker reference	62212940GP

62212940GP-COVER SPOILER GAU.

	P2R reference	84414
	Maker reference	62212940ND

COVER DE SPOILER LEFT OEM PIAGGIO 50-125 VESPA LX, VESPA-S BLACK 79/A-62212940ND

	P2R reference	84418
	Maker reference	62212940R7

LEFT SPOILER REAR TERMINAL "PIAGGIO GENUINE PART" 50-125 VESPA LX, VESPA-S RED 894 -6221294R7D

	P2R reference	84422
	Maker reference	62212940XN2

62212940XN2 - COUVERTURE SPOILER GAU.

	P2R reference	84443
	Maker reference	62213040BM

62213040BM - COUVERTURE SPOILER DR

	P2R reference	84444
	Maker reference	62213040BR

62213040BR - COUVERTURE SPOILER DR

	P2R reference	84446
	Maker reference	62213040DE

RIGHT SPOILER REAR TERMINAL "PIAGGIO GENUINE PART" 50-125 VESPA LX, VESPA-S BLUE 222/A -62213040DE-

	P2R reference	84450
	Maker reference	62213040EU

62213040EU-COVER SPOILER DR

	P2R reference	84452
	Maker reference	62213040F2

RIGHT SPOILER REAR TERMINAL "PIAGGIO GENUINE PART" 50-125 VESPA LX, VESPA-S GREY 738/A -62213040F2-

	P2R reference	84454
	Maker reference	62213040GP

62213040GP-COVER SPOILER DR

	P2R reference	84461
	Maker reference	62213040ND

62213040ND - COUVERTURE SPOILER DR

	P2R reference	84465
	Maker reference	62213040R7

RIGHT SPOILER REAR TERMINAL "PIAGGIO GENUINE PART" 50-125 VESPA LX, VESPA-S RED 894 -62213040R7-

	P2R reference	109264
	Maker reference	5A000086

COVER SPOILER RIGHT OEM PIAGGIO 50-125 VESPA LX, VESPA-S UNPAINTED READY TO PAINT-5A000086

	P2R reference	84469
	Maker reference	62213040XN2

RIGHT SPOILER REAR TERMINAL "PIAGGIO GENUINE PART" 50-125 VESPA LX, VESPA-S BLACK 98/A -62213040XN2-

	P2R reference	84437
	Maker reference	6221304087

6221304087-COVER SPOILER DR *

	P2R reference	84439
	Maker reference	62213040AA

62213040AA - COUVERTURE SPOILER DR

	P2R reference	109264
	Maker reference	6221304

COVER SPOILER RIGHT OEM PIAGGIO 50-125 VESPA LX, VESPA-S UNPAINTED READY TO PAINT-5A000086

	P2R reference	84441
	Maker reference	62213040AH

62213040AH-COVER SPOILER DR

	P2R reference	78065
	Maker reference	299557

CAP DE FRAME OEM PIAGGIO COMMON A LA RANGE-299557

	P2R reference	78066
	Maker reference	299558

CAP OEM PIAGGIO COMMON A LA RANGE-299558

	P2R reference	78067
	Maker reference	299559

CAP DE FRAME OEM PIAGGIO COMMON A LA RANGE-299559

	P2R reference	83684
	Maker reference	620556

620556 - BOUCHON
