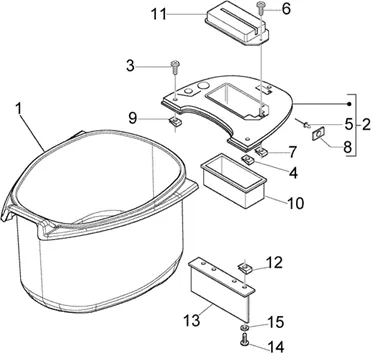

Vehicle Exploded View - VESPA VESPA LX 50 2T 1998-2005 VESPA

Châssis : T24 PORTE CASQUE
porte casque
Search
HELMET COMPARTMENT "PIAGGIO GENUINE PART" PIAGGIO 50-125 VESPA LX, VESPA-S -675266-

1
P2R reference P2R reference 91924
Maker reference Maker reference 675266

HELMET COMPARTMENT "PIAGGIO GENUINE PART" PIAGGIO 50-125 VESPA LX, VESPA-S -675266

More information

Quantity required : 1

COVER DE BATTERY OEM PIAGGIO 50 VESPA LX 2T 2005, VESPA S 2007 >-623019

2
P2R reference P2R reference 84747
Maker reference Maker reference 623019

COVER DE BATTERY OEM PIAGGIO 50 VESPA LX 2T 2005, VESPA S 2007 >-623019

More information

Quantity required : 1

SCREW AUTOTARAUDEUSE (4, 2X25) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259372

3
P2R reference P2R reference 66036
Maker reference Maker reference 259372

SCREW AUTOTARAUDEUSE (4, 2X25) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259372

More information

Quantity required : 4

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

4
P2R reference P2R reference 66009
Maker reference Maker reference 254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

More information

Quantity required : 1

RIVET MOUNTING ELEMENT DE CARROSSERIE OEM PIAGGIO COMMON A LA RANGE-182302

5
P2R reference P2R reference 65802
Maker reference Maker reference 182302

RIVET MOUNTING ELEMENT DE CARROSSERIE OEM PIAGGIO COMMON A LA RANGE-182302

More information

Quantity required : 1

SCREW AUTOTARAUDEUSE (4, 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259349

6
P2R reference P2R reference 66035
Maker reference Maker reference 259349

SCREW AUTOTARAUDEUSE (4, 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259349

More information

Quantity required : 1

NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410

7
P2R reference P2R reference 72926
Maker reference Maker reference CM017410

NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410

More information

Quantity required : 3

BRACKET DOOR FUSIBLE OEM PIAGGIO COMMON A LA RANGE-290405

8
P2R reference P2R reference 66242
Maker reference Maker reference 290405

BRACKET DOOR FUSIBLE OEM PIAGGIO COMMON A LA RANGE-290405

More information

Quantity required : 1

NUT SHEET METAL (4. 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017408

9
P2R reference P2R reference 72924
Maker reference Maker reference CM017408

NUT SHEET METAL (4. 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017408

More information

Quantity required : 2

297369 - COFFRE BATTERIE

10
P2R reference P2R reference 77936
Maker reference Maker reference 297369

297369 - COFFRE BATTERIE

More information

Quantity required : 1

COVER DE BATTERY OEM PIAGGIO 50-125 VESPA LX 2005 >, VESPA-S 2007 >-576017

11
P2R reference P2R reference 80740
Maker reference Maker reference 576017

COVER DE BATTERY OEM PIAGGIO 50-125 VESPA LX 2005 >, VESPA-S 2007 >-576017

More information

Quantity required : 1

NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410

12
P2R reference P2R reference 72926
Maker reference Maker reference CM017410

NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410

More information

Quantity required : 2

SCREW OF FAIRING (3, 5X13) OEM PIAGGIO COMMON A TOUTE LA RANGE-297498

14
P2R reference P2R reference 66301
Maker reference Maker reference 297498

SCREW OF FAIRING (3, 5X13) OEM PIAGGIO COMMON A TOUTE LA RANGE-297498

More information

Quantity required : 4

WASHER PLATE (4X12) OEM PIAGGIO COMMON A LA RANGE-013763

15
P2R reference P2R reference 65360
Maker reference Maker reference 0137635

WASHER PLATE (4X12) OEM PIAGGIO COMMON A LA RANGE-013763

More information

Quantity required : 4
