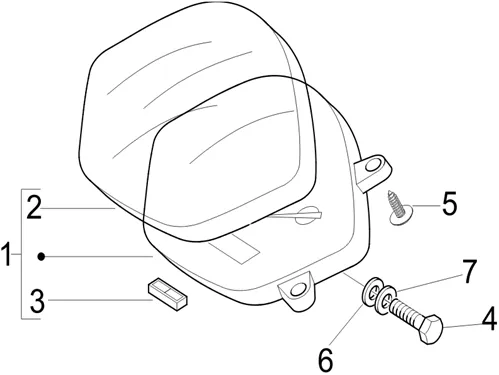

Guidon/direction : 03.02 GROUPE INSTRUMENTS - CRUSCOTTO
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/547/Vespa_LX_125_4T_E3_2006-2008_03.02.PNG)
1 |
58156R - GROUPE INSTRUMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/3/1/img/67831.jpg)
2 |
VITRE DE INSTRUMENT CLUSTER ECIE 4 TROUS OEM PIAGGIO 50-125 LIBERTY 2005 >, VESPA LX 2005 >, 125 VESPA GTS 2007 >-639414 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/8/2/img/67882.jpg)
2 |
VITRE DE INSTRUMENT CLUSTER PRICOL 10 TROUS OEM PIAGGIO 50-125 LIBERTY 2005 >, VESPA LX 2005 >, 125 VESPA GTS 2007 >-640504 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/8/7/img/72187.jpg)
3 |
HORLOGE/MONTRE OEM PIAGGIO 50-125 VESPA LX, VESPA-S, LIBERTY, 125-250-300 VESPA GTS, X7, THREE-WHEELER APE 50/APRILIA 125-250-300-400-500 ATLANTIC, 125 SCARABEO/GILERA 50 STAKER-AP8212406 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/2/img/65632.jpg)
4 |
SCREW TH (5X12) OEM PIAGGIO COMMON A LA RANGE-031056 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/2/img/66092.jpg)
5 |
SCREW AUTOTARAUDEUSE (3. 85X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-270793 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/0/2/img/63802.jpg)
6 |
WASHER PLATE (5. 2X15X1) OEM PIAGGIO COMMON A LA RANGE-006078 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/5/img/65415.jpg)
7 |
WASHER GROWER (5, 1X8, 5X1, 5) OEM PIAGGIO COMMON A LA RANGE-016405 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/6/0/img/65760.jpg)
8 |
AMPOULE/LAMPE 12V 1, 2W CULOT W2X4. 6D BULB T5 TEMOIN WHITE OEM PIAGGIO COMMON A LA RANGE-164634 More informationQuantity required : 3 |
||||||
|
9 |
AMPOULE/LAMPE 12V 1, 2W CULOT W2X4. 6D BULB T5 TEMOIN WHITE OEM PIAGGIO COMMON A LA RANGE-164634 More informationQuantity required : 6 |
