Vehicle Exploded View - VESPA VESPA GTS 300 Super HPE 4V ie ABS E4 2018-2020
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

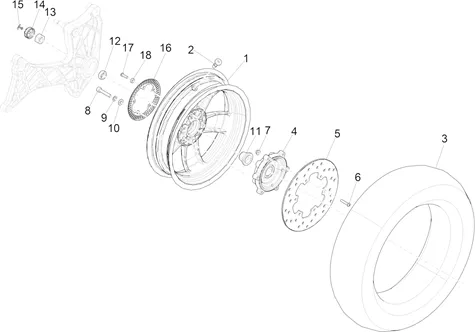

Suspensions - roues : 04.12 ROUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/965/Vespa_GTS_300_Super_HPE_4V_ie_ABS_E4_2018-2020_04.12.png)
1 |
1C005280-REAR WHEEL More informationQuantity required : 1 |
||||||
|
1 |
1C00286000090-WHEEL 3. 00X12 " More informationQuantity required : 1 |
||||||
|
1 |
1C001078-WHEEL 12 " X 3. 00 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/5/0/img/67350.jpg)
2 |
VALVE TUBELESS OEM PIAGGIO COMMON A LA RANGE-597679 More informationQuantity required : 1 |
||||||
|
3 |
CM319106-REAR TYRE 130 70 12 More informationQuantity required : 1 |
||||||
|
3 |
598278-TYRE 130/70-12 SAVA MC20 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/6/1/img/67361.jpg)
4 |
FLASQUE/BRACKET BRAKE DISC OEM PIAGGIO 125-250-300 VESPA GTS, 125 FLY 2012 > 2013/GILERA 125 RUNNER 2005 >-598715 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/8/2/img/67082.jpg)
5 |
BRAKE DISC SCOOT OEM PIAGGIO 50 NRG POWER AV, 50-125 LIBERTY AV, 125 FLY 2012 > 2013 AR, 125-250-300 VESPA GTS AV + AR/GILERA 50 RUNNER 2005 > AV, 125 RUNNER 1998 > 2016 AR-56484R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/4/7/img/67347.jpg)
6 |
SCREW BTR HEAD BOMBEE (6X30) OEM PIAGGIO COMMON A LA RANGE-597564 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/4/8/img/67348.jpg)
7 |
NUT FLANGE AUTOBLOQUANT (M6) OEM PIAGGIO COMMON A LA RANGE-59565 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/7/img/65747.jpg)
8 |
SCREW BTR (8X40) OEM PIAGGIO COMMON A LA RANGE-149104 More informationQuantity required : 5 |
||||||
|
8 |
SCREW BTR (8X40) OEM PIAGGIO COMMON A LA RANGE-149104 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/1/img/68491.jpg)
9 |
WASHER ELASTIC COURBE (8. 4X15X0. 8) OEM PIAGGIO COMMON A TOUTE LA RANGE-709047 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/9/8/img/68798.jpg)
10 |
WASHER PLATE (8, 2X17X2, 5) OEM PIAGGIO COMMON A LA RANGE-828961 More informationQuantity required : 5 |
||||||
|
11 |
1C002344-SPACER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/5/5/7/img/127557.jpg)
12 |
1C002175-SPACER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/3/5/img/67035.jpg)
13 |
NUT (M16) OEM PIAGGIO COMMON A TOUTE LA RANGE-563728 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/9/6/5/0/img/189650.jpg)
14 |
CAGE MOUNTING NUT DE REAR WHEEL OEM PIAGGIO COMMON A TOUTE LA RANGE SCOOTER ET MAXI SCOOTER-1C004746 More informationQuantity required : 1 |
||||||
|
14 |
CAGE MOUNTING NUT DE REAR WHEEL OEM PIAGGIO COMMON A TOUTE LA RANGE SCOOTER ET MAXI SCOOTER-1C004746 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/5/5/img/65355.jpg)
15 |
GOUPILLE SECURITE NUT DE REAR WHEEL OEM PIAGGIO COMMON A TOUTE LA RANGE SCOOTER ET MAXI SCOOTER-012789 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/3/2/3/9/img/153239.jpg)
16 |
WHEEL PHONIQUE REAR ABS OEM PIAGGIO 125-300 GTS 2016 >-1C003698R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/3/6/img/68436.jpg)
17 |
SCREW BTR HEAD BOMBEE (6X20) WITH BRAKE NET THREAD OEM PIAGGIO COMMON A LA RANGE-667152 More informationQuantity required : 5 |
||||||
|
18 |
1C001044-SPACER More informationQuantity required : 5 |
