Vehicle Exploded View - VESPA VESPA GTS 300 ie 2012-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

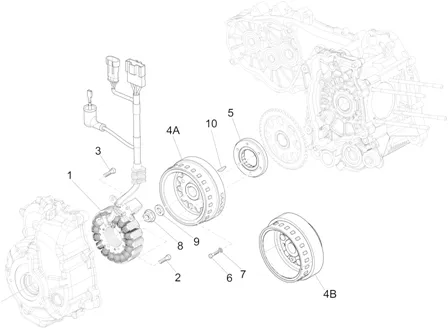

Moteur : 01.21 VOLANT MAGNETIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/215/Vespa_GTS_300_ie_2012-2015_01.21.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/4/8/img/67248.jpg)
1 |
STATOR IGNITION MAXI SCOOTER OEM PIAGGIO 125-300 MP3, YOURBAN 2012 >, BEVERLY, VESPA GTS 2009 >, 300 X7 2009 >, 125 X10 2012 > ENGINE INJECTION/APRILIA 300 ATLANTIC 2010 >-642054 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/4/7/img/67347.jpg)
2 |
SCREW BTR HEAD BOMBEE (6X30) OEM PIAGGIO COMMON A LA RANGE-597564 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/8/3/img/65383.jpg)
3 |
SCREW CRUCIFORME (5X12) OEM PIAGGIO COMMON A TOUTE LA RANGE-015585 More informationQuantity required : 2 |
||||||
4 |
873034-ROTOR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/7/3/3/img/81733.jpg)
4 |
ROTOR IGNITION WITH WHEEL LIBRE DE STARTER MOTOR OEM PIAGGIO 125 X10 2012 >, 300 BEVERLY 2010 >, MP3 2014 >, YOURBAN 2012 >, VESPA GTS-GTV 2010 >/APRILIA 300 SR-MAX 2012 >-1A016720 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/1/5/3/img/149153.jpg)
5 |
WHEEL LIBRE DE STARTER MOTOR (6 TROUS) OEM PIAGGIO 300-350-400-500 MP3, BEVERLY, 250-300 VESPA GTS, 400 X8, X-EVO, 500 X9, X10/GILERA 500 FUOCO, NEXUS/APRILIA 300-400-500 ATLANTIC, SCARABEO-1A0093875 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/5/6/img/70656.jpg)
6 |
SCREW BTR (6X24) OEM PIAGGIO COMMON A LA RANGE-877289 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/7/9/img/66579.jpg)
7 |
WASHER GROWER (6) OEM PIAGGIO COMMON A LA RANGE-479515 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/5/3/img/68853.jpg)
8 |
NUT ROTOR IGNITION OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER 125-250-300-82952R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/2/9/img/69229.jpg)
9 |
WASHER PLATE (16X30X2) OEM PIAGGIO COMMON A LA RANGE-842385 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/7/4/img/63674.jpg)
10 |
CLAVETTE IGNITION OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-000097 More informationQuantity required : 1 |
