Vehicle Exploded View - VESPA VESPA GTS 300 VESPA GTS 300 ABS E5 2022 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

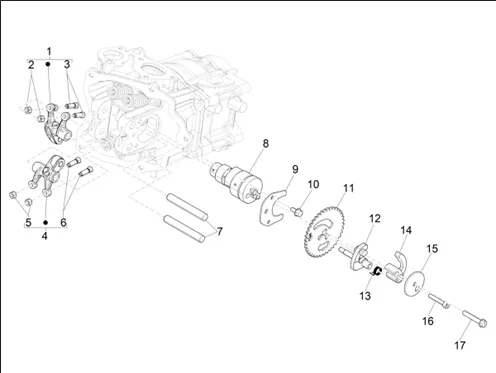

Moteur : 01.11 GROUPE SUPPORT BALANCIERS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1182/VESPA_GTS_300_ABS_E5_2022_EMEA_01.11.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/1/7/6/3/img/201763.jpg)
1 |
CULBUTEUR INTAKE (ATTENTION ACCOUPLE WITH 1A021577) OEM PIAGGIO 300 MP3, BEVERLY, GTS 2019 >-1A021575 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/7/5/7/img/198757.jpg)
2 |
NUT REGLAGE CULBUTEUR OEM PIAGGIO 530 MP3 2022 >/300 BEVERLY, GTS 2022 >-1A021306 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/7/5/6/img/198756.jpg)
3 |
SCREW OF REGLAGE VALVE OEM PIAGGIO 530 MP3, 300 GTS 2022 >-1A021303 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/1/7/6/4/img/201764.jpg)
4 |
CULBUTEUR EXHAUST (ATTENTION ACCOUPLE WITH 1A021575) OEM PIAGGIO 300 MP3, BEVERLY, GTS 2019 >-1A021577 More informationQuantity required : 1 |
|||||||||
|
5 |
NUT REGLAGE CULBUTEUR OEM PIAGGIO 530 MP3 2022 >/300 BEVERLY, GTS 2022 >-1A021306 More informationQuantity required : 2 |
|||||||||
|
6 |
SCREW OF REGLAGE VALVE OEM PIAGGIO 530 MP3, 300 GTS 2022 >-1A021303 More informationQuantity required : 2 |
|||||||||
7 |
SHAFT OF CULBUTEUR OEM PIAGGIO 300 BEVERLY, MP3, GTS 2019 >-1A013022 More informationQuantity required : 2 |
|||||||||
|
8 |
CAMSHAFT (REPERE A) OEM PIAGGIO 30 BEVERLY, MP3, GTS 2019 >-1A0143690A More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/0/1/9/img/156019.jpg)
8 |
CAMSHAFT (REPERE B) OEM PIAGGIO 30 BEVERLY, MP3, GTS 2019 >-1A0143690B More informationQuantity required : 1 |
|||||||||
|
8 |
CAMSHAFT (REPERE C) OEM PIAGGIO 30 BEVERLY, MP3, GTS 2019 >-1A0143690C More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/5/9/img/70659.jpg)
9 |
SHEET METAL CAMSHAFT OEM PIAGGIO COMMON A LA RANGE-877309 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/5/5/img/66655.jpg)
10 |
SCREW FLANGE TH (5X12) OEM PIAGGIO COMMON A LA RANGE-484123 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/6/0/5/img/94605.jpg)
11 |
COURONNE TIMING OEM PIAGGIO 300-400 BEVERLY, MP3, GTS 2019 >-B014970 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/3/8/8/img/151388.jpg)
12 |
MASSE DE DECOMPRESSEUR (REPERE A) OEM PIAGGIO 300-350-400 BEVERLY, MP3, GTS 2017 >-CM295801 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/3/8/9/img/151389.jpg)
12 |
MASSE DE DECOMPRESSEUR (REPERE B) OEM PIAGGIO 300-350-400 BEVERLY, MP3, GTS 2017 >-CM295802 More informationQuantity required : 1 |
|||||||||
|
12 |
MASSE DE DECOMPRESSEUR (REPERE C) OEM PIAGGIO 300-350-400 BEVERLY, MP3, GTS 2017 >-CM329003 More informationQuantity required : 1 |
|||||||||
|
12 |
MASSE DE DECOMPRESSEUR (REPERE C) OEM PIAGGIO 300-350-400 BEVERLY, MP3, GTS 2017 >-CM329003 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/6/0/3/img/94603.jpg)
13 |
SPRING MASSE DE DECOMPRESSEUR OEM PIAGGIO 300-350-400 BEVERLY, MP3, GTS 2017 > B014925 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/3/4/3/2/img/93432.jpg)
14 |
CONTRE POIDS DECOMPRESSEUR OEM PIAGGIO 300 BEVERLY, MP3, GTS 2019 >-880893 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/5/3/6/img/94536.jpg)
15 |
WASHER DE BALANCIER OEM PIAGGIO 250-300-350-400 2007 >-B013841 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/1/6/6/img/127166.jpg)
16 |
SCREW BTR (5X30) OEM PIAGGIO COMMON A LA RANGE-1A003053 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/6/7/img/66367.jpg)
17 |
SCREW FLANGE TH (6X35) OEM PIAGGIO COMMON A LA RANGE-414838 More informationQuantity required : 1 |
|||||||||
