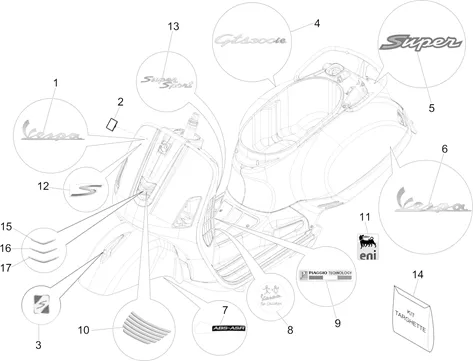

Châssis - parties plastiques - carrosseries : 02.38 MONOGRAMMES - DECORATIONS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/866/Vespa_GTS_300_4T_4V_ie_ABS-_NOABS_E3_2008-2016__02.38.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/1/3/0/img/89130.jpg)
1 |
STICKER/STICKER/GRAPHIC " VESPA " OEM PIAGGIO 50-125 VESPA LX 2006 >, PRIMAVERA 2013 >, VESPA-S 2007 >, SPRINT 2014 >, 125 VESPA GTS 2007 >, PX 2014 >-656219 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/6/1/7/img/90617.jpg)
1 |
STICKER/STICKER/GRAPHIC DE FRONT PANEL FRONT " VESPA " OEM PIAGGIO 50-125 VESPA-S, 125-300 VESPA GTS-672060 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/2/9/img/67129.jpg)
2 |
STICKER/STICKER/GRAPHIC OEM PIAGGIO 125 VESPA PX 1980 > 1998/300 GTV 2017 >-576464 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/8/4/7/4/img/88474.jpg)
3 |
STICKER/STICKER/GRAPHIC VESPA " S " CRETE MUDGUARD OEM PIAGGIO 50-125 VESPA-S, 125-250-300 VESPA GTS-654821 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/1/4/8/img/89148.jpg)
4 |
STICKER/STICKER/GRAPHIC BODY PANEL REAR RIGHT " GTS 300 IE " OEM PIAGGIO 300 VESPA GTS 2010 >-656238 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/8/1/2/img/90812.jpg)
5 |
STICKER/STICKER/GRAPHIC " SUPER " OEM PIAGGIO 125-250-300 VESPA GTS 2009 >-672498 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/6/1/8/img/90618.jpg)
6 |
STICKER/STICKER/GRAPHIC BODY PANEL REAR OEM PIAGGIO VESPA 125-300 GTS, 50-125 VESPA-S 2007 >-672061 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/1/3/1/img/89131.jpg)
6 |
STICKER/STICKER/GRAPHIC " VESPA " OEM PIAGGIO COMMON A LA RANGE SCOOTER 50-125 VESPA-656220 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/8/6/8/img/75868.jpg)
7 |
STICKER/STICKER/GRAPHIC " ABS-ASR " OEM PIAGGIO 125-300 VESPA GTS 2008 > 2018-1B001417 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/8/1/4/img/75814.jpg)
8 |
STICKER/STICKER/GRAPHIC (VESPA FOR CHILDREN) OEM PIAGGIO COMMON A LA RANGE VESPA-1B001078 More informationQuantity required : 1 |
||||||
9 |
672200 - MONOGRAMME CARTER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/1/4/9/img/89149.jpg)
10 |
DECO GRILLE DE HORN DE COVER STEERING OEM PIAGGIO 125-250-300 VESPA GTS-656239 More informationQuantity required : 1 |
||||||
|
11 |
895839 - DECALCO More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/1/0/9/1/img/91091.jpg)
12 |
STICKER/STICKER/GRAPHIC " S " OEM PIAGGIO 125-300 VESPA GTS-673337 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/6/1/9/img/90619.jpg)
13 |
STICKER/STICKER/GRAPHIC " SUPERSPORT " OEM PIAGGIO 125-300 VESPA GTS 2009 >-672062 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/1/0/8/8/img/91088.jpg)
14 |
KIT DECO BAS BODY PANEL OEM PIAGGIO 125-300 VESPA GTS-67333600A4 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/7/0/0/img/127700.jpg)
14 |
STICKER/STICKER/KIT DECORS " SUPER " OEM PIAGGIO 125-300 VESPA GTS 2008 > 2006-67333600A8 More informationQuantity required : 1 |
||||||
|
15 |
2H001141-DECALCOMANIE More informationQuantity required : 1 |
||||||
|
16 |
2H001142-DECALCOMANIE More informationQuantity required : 1 |
||||||
|
17 |
2H001143-DECALCOMANIE More informationQuantity required : 1 |
