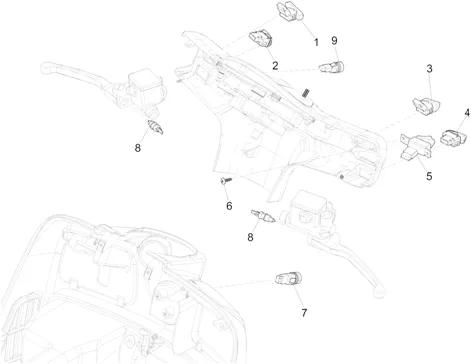

Installation électrique : 06.01 INVERSEURS - COMMUTATEURS - BOUTONS - INTERRUPTEURS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/212/Vespa_GTS_250_2005-2014_06.01.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/8/2/0/img/77820.jpg)
1 |
CONTACTEUR/SWITCH CODE HEADLAMP OEM PIAGGIO 125 VESPA GTS, 50-125 VESPA LX, VESPA-S-294877 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/7/6/img/67176.jpg)
2 |
BUTTON DEMARRAGE OEM PIAGGIO 50 TYPHOON, NRG, FLY, ZIP, 125 FLY, LIBERTY, 125-250-400 X8, X9, X-EVO, BEVERLY/GILERA 50 STALKER/APRILIA 125-300-500 SCARABEO-58057R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/2/1/6/img/86216.jpg)
2 |
BUTTON DEMARRAGE OEM PIAGGIO 50 TYPHOON 2018 >, 125-250-300 MP3, X7, VESPA GTS/APRILIA 50 SR MOTARD 2018 >-641609 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/0/9/1/img/82091.jpg)
3 |
BUTTON ARRET ENGINE/COUPE CIRCUIT OEM PIAGGIO 50-125 VESPA LX 2005 >, VESPA-S 2007 >, 125-250-300 VESPA GTS-584599 More informationQuantity required : 1 |
||||||
3 |
641761 - INVERSEUR CODE/PHARE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/7/7/img/67177.jpg)
4 |
BUTTON/SWITCH AVERTISSEUR OEM PIAGGIO 50 TYPHOON, NRG, FFY, ZIP, 125-250-500 X-EVO, X8, X9, BEVERLY/GILERA 50 STALKER, RUNNER/APRILIA 125-250-400-500 SCARABEO-LIGHT LEFT-58058R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/2/3/4/img/86234.jpg)
4 |
BUTTON/CONTACTEUR AVERTISSEUR OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-641743 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/8/0/4/img/77804.jpg)
5 |
BUTTON/SWITCH CLIGNOTANTS OEM PIAGGIO 50-125 VESPA LX, VESPA-S, 125 VESPA GTS-294723 More informationQuantity required : 1 |
||||||
|
5 |
641745-COMM. CLIGNOTANTS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/1/img/66301.jpg)
6 |
SCREW OF FAIRING (3, 5X13) OEM PIAGGIO COMMON A TOUTE LA RANGE-297498 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/7/1/img/67271.jpg)
7 |
BUTTON/CONTACTEUR OUVERTURE DE SEAT OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-582988 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/8/6/img/67286.jpg)
8 |
CONTACTEUR LAMP STOP MAXI SCOOTER OEM PIAGGIO 125-250-300-400-500 MP3, BEVERLY, 50 TYPHOON, NRG, 125-250-400 X8, X9, 50-125 FLY, VESPA LX, 125-250-300 VESPA GTS/GILERA 125-250-300 NEXUS-583575 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/2/6/3/img/86263.jpg)
9 |
BUTTON MODE OEM PIAGGIO COMMON A LA RANGE-641859 More informationQuantity required : 1 |
