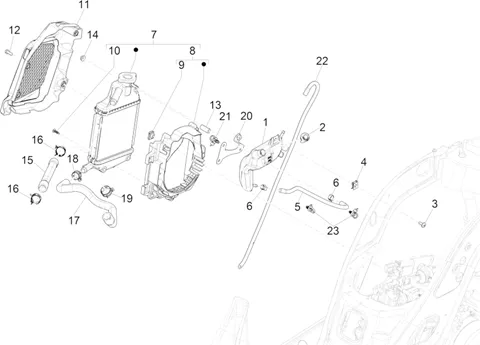

Châssis - parties plastiques - carrosseries : 02.55 INSTALATION DE REFOIDISSEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1222/Vespa_GTS_125_Super_4T_ABS_E4_2016-2018_(EMEA)_02.55.png)
1 |
1B003453-TANK DE COOLING More informationQuantity required : 1 |
||||||
|
2 |
1B003538-CAP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/6/img/73366.jpg)
3 |
SCREW TORX (6X16) OEM PIAGGIO COMMON A LA RANGE-CM179301 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
4 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
||||||
|
5 |
CM278701-FUEL HOSE L: 280 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/3/img/72863.jpg)
6 |
CLAMP SERRE TUBE OEM PIAGGIO COMMON A LA RANGE-CM001901 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/2/6/7/img/146267.jpg)
7 |
RADIATOR WATER OEM PIAGGIO 125 MEDLEY, VESPA GTS 2016 >-1A017507 More informationQuantity required : 1 |
||||||
|
8 |
1A007893-PRISE AIR LEFT More informationQuantity required : 1 |
||||||
|
9 |
1A003988-PLATE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/6/8/img/66068.jpg)
10 |
SCREW AUTOTARAUDEUSE (L 20 MM) OEM PIAGGIO COMMON A LA RANGE-267958 More informationQuantity required : 3 |
||||||
|
11 |
1A008528-COVER RADIATOR More informationQuantity required : 1 |
||||||
|
12 |
1A006359-SCREW M6X16 More informationQuantity required : 4 |
||||||
|
13 |
1A001859-SPACER More informationQuantity required : 4 |
||||||
|
14 |
874558-NUT More informationQuantity required : 4 |
||||||
|
15 |
1A006075-HOSE WATER More informationQuantity required : 1 |
||||||
|
16 |
CM226910-CLAMP FBS 24/12 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/6/0/8/img/139608.jpg)
17 |
HOSE COOLING DE LA PUMP AU RADIATOR OEM PIAGGIO 125 MEDLEY, VESPA GTS 2016 >-1A006076 More informationQuantity required : 1 |
||||||
|
18 |
CM226903-CLAMP More informationQuantity required : 1 |
||||||
|
19 |
CM226911-CLAMP FBS 26/12 More informationQuantity required : 1 |
||||||
|
20 |
1A006358-PLATE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/5/9/3/img/127593.jpg)
21 |
CLAMP SERRE CABLE OEM PIAGGIO COMMON A LA RANGE-1D001143 More informationQuantity required : 1 |
||||||
|
22 |
CM001444-HOSE RENIFLARD More informationQuantity required : 1 |
||||||
|
23 |
640879-CLAMP More informationQuantity required : 1 |
||||||
|
23 |
CLAMP SERRE CABLE OEM PIAGGIO COMMON A LA RANGE-1D001143 More informationQuantity required : 1 |
||||||
|
23 |
CLAMP SERRE CABLE OEM PIAGGIO COMMON A LA RANGE-1D001143 More informationQuantity required : 2 |
