Vehicle Exploded View - VESPA VESPA GTS 125 -GTS Super 125 4T ie ABS E4 2016-2018
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

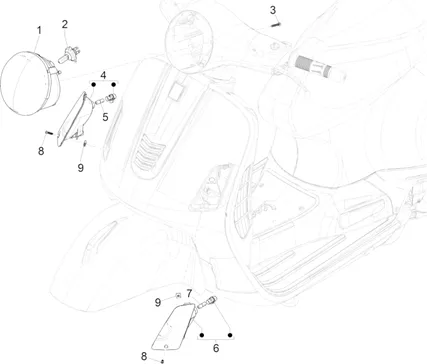

Circuit électrique : 06.03 ECLAIRAGES AVANT - CLIGNOTANTS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1223/Vespa_GTS_125-GTS_Super_125_4T_ie_ABS_E4_2016-2018_06.03.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/6/2/1/2/img/76212.jpg)
1 |
LAMP UNIT/HEADLAMP/HEADLAMP (PAS D'EMPLACEMENT FOR VEILLEUSE) OEM PIAGGIO 125-250-300 VESPA GTS-1D000482 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/6/2/1/3/img/76213.jpg)
1 |
LAMP UNIT/HEADLAMP/HEADLAMP OEM PIAGGIO 125-300 GTS VESPA 2016 > 2018-1D000483 More informationQuantity required : 1 |
||||||
1 |
1D000643-HEADLAMP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/5/6/img/66256.jpg)
2 |
AMPOULE/LAMPE 12V 60/55W H4 OEM PIAGGIO COMMON A LA RANGE-292723 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/9/3/img/66293.jpg)
3 |
SCREW SHEET METAL (L35MM) OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-296458 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/1/3/5/img/82135.jpg)
4 |
FRONT RIGHT INDICATOR (NON LED) OEM PIAGGIO 125-250-300 VESPA GTS 2007 > 2022-584970 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/4/1/3/1/img/214131.jpg)
4 |
SET OF CLIGNOTANTS FRONT (A LED) OEM PIAGGIO 125-250-300 VESPA GTS 2009 > 2022-1D003681 More informationQuantity required : 1 |
||||||
|
4 |
SET OF CLIGNOTANTS FRONT (A LED) OEM PIAGGIO 125-250-300 VESPA GTS 2009 > 2022-1D003681 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/6/1/7/6/img/76176.jpg)
5 |
AMPOULE/LAMPE 12V 6W BAZ9S/H6W ORANGE OEM PIAGGIO COMMON A LA RANGE-1D000261 More informationQuantity required : 1 |
||||||
|
6 |
SET OF CLIGNOTANTS FRONT (A LED) OEM PIAGGIO 125-250-300 VESPA GTS 2009 > 2022-1D003681 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/1/3/6/img/82136.jpg)
6 |
FRONT LEFT INDICATOR (NON LED) OEM PIAGGIO 125-250-300 VESPA GTS 2007 > 2022-584971 More informationQuantity required : 1 |
||||||
|
6 |
SET OF CLIGNOTANTS FRONT (A LED) OEM PIAGGIO 125-250-300 VESPA GTS 2009 > 2022-1D003681 More informationQuantity required : 1 |
||||||
|
7 |
AMPOULE/LAMPE 12V 6W BAZ9S/H6W ORANGE OEM PIAGGIO COMMON A LA RANGE-1D000261 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/5/6/img/63856.jpg)
8 |
SCREW PARKER (4, 2X19) CRUCIFORME DE INDICATOR OU FAIRING OEM PIAGGIO COMMON A TOUTE LA RANGE-008457 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/1/9/0/img/95190.jpg)
9 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017406 More informationQuantity required : 2 |
