Vehicle Exploded View - VESPA VESPA GTS 125 -GTS Super 125 4T ie ABS E4 2016-2018
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

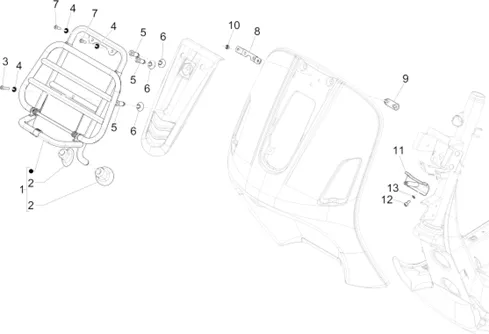

Châssis - parties plastiques - carrosseries : 02.43 PORTE-BAGAGES AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1223/Vespa_GTS_125-GTS_Super_125_4T_ie_ABS_E4_2016-2018_02.43.png)
1 |
DOOR-LUGGAGE FRONT OEM PIAGGIO 125-300 VESPA GTS 2016 > 2018-1B002105 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/6/2/2/img/90622.jpg)
2 |
BUFFER/VENTOUSE FOR DOOR LUGGAGE FRONT OEM PIAGGIO COMMON A LA RANGE-672066 More informationQuantity required : 2 |
||||||
|
3 |
672340-SCREW More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/3/2/img/69132.jpg)
4 |
WASHER CRANTEE (6. 1X14X2. 1) OEM PIAGGIO COMMON A LA RANGE-834951 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/7/5/2/img/90752.jpg)
5 |
SPACER DE DOOR LUGGAGE FRONT OEM PIAGGIO 125-300 GTS VESPA 2011 > 2018-672320 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/7/7/3/img/90773.jpg)
6 |
WASHER GASKET OF DOOR LUGGAGE FRONT OEM PIAGGIO COMMON A LA RANGE VESPA-672330 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/6/1/img/68461.jpg)
7 |
SCREW BTR HEAD BOMBEE (6X20) OEM PIAGGIO COMMON A LA RANGE-672380 More informationQuantity required : 2 |
||||||
|
8 |
672290-CALIPER More informationQuantity required : 1 |
||||||
|
9 |
672319-CALIPER More informationQuantity required : 1 |
||||||
|
10 |
709116-NUT More informationQuantity required : 2 |
||||||
|
11 |
672317-CALIPER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/1/4/img/65714.jpg)
12 |
SCREW BTR (6X12) OEM PIAGGIO COMMON A LA RANGE-122675 More informationQuantity required : 2 |
||||||
|
13 |
012536-WASHER More informationQuantity required : 2 |
