Vehicle Exploded View - VESPA VESPA GTS 125 4T ie Super E3 2009-2016 VESPA

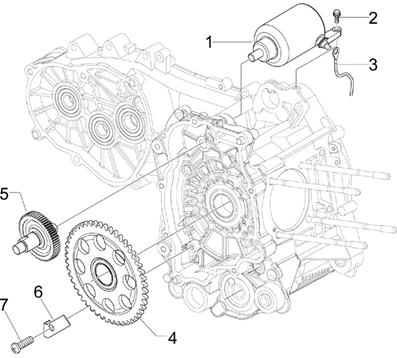

Moteur : 01.20 DÉMARRAGE - DÉMARRAGE ÉLECTRIQUE
Démarrage - Démarrage électrique
Search
STARTER MOTOR OEM PIAGGIO 125-300 MP3, YOURBAN, VESPA GTS, X7, BEVERLY, 250 X8, X-EVO, X9/GILERA 125-250-300 NEXUS/APRILIA 125-250-300 ATLANTIC, SCARABEO, SPORT-CITY, 125-300 SR-MAX-1A011611R

1
P2R reference P2R reference 156038
Maker reference Maker reference 1A011611R

STARTER MOTOR OEM PIAGGIO 125-300 MP3, YOURBAN, VESPA GTS, X7, BEVERLY, 250 X8, X-EVO, X9/GILERA 125-250-300 NEXUS/APRILIA 125-250-300 ATLANTIC, SCARABEO, SPORT-CITY, 125-300 SR-MAX-1A011611R

More information

Quantity required : 1

STARTER MOTOR OEM PIAGGIO 125-300 MP3, YOURBAN, VESPA GTS, X7, BEVERLY, 250 X8, X-EVO, X9/GILERA 125-250-300 NEXUS/APRILIA 125-250-300 ATLANTIC, SCARABEO, SPORT-CITY-58218R5

1
P2R reference P2R reference 81716
Maker reference Maker reference 58218R5

STARTER MOTOR OEM PIAGGIO 125-300 MP3, YOURBAN, VESPA GTS, X7, BEVERLY, 250 X8, X-EVO, X9/GILERA 125-250-300 NEXUS/APRILIA 125-250-300 ATLANTIC, SCARABEO, SPORT-CITY-58218R5

More information

Quantity required : 1

SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774

2
P2R reference P2R reference 72720
Maker reference Maker reference 414837

SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774

More information

Quantity required : 2

SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774

2
P2R reference P2R reference 72720
Maker reference Maker reference B016774

SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774

More information

Quantity required : 2

639028 - CABLE POUR MOT.STARTER

3
P2R reference P2R reference 67820
Maker reference Maker reference 639028

639028 - CABLE POUR MOT.STARTER

More information

Quantity required : 1

COURONNE DE STARTER MOTOR OEM PIAGGIO 125-250-300-400-500 MP3, BEVERLY, 125-250-300 VESPA GTS, X7, 125-250 X8, X9, X-EVO/GILERA 125-250-300-500 NEXUS/APRILIA 300-400-500 ATLANTIC, SCARABEO-82737R

4
P2R reference P2R reference 68666
Maker reference Maker reference 82737R

COURONNE DE STARTER MOTOR OEM PIAGGIO 125-250-300-400-500 MP3, BEVERLY, 125-250-300 VESPA GTS, X7, 125-250 X8, X9, X-EVO/GILERA 125-250-300-500 NEXUS/APRILIA 300-400-500 ATLANTIC, SCARABEO-82737R

More information

Quantity required : 1

SPROCKET DE RENVOI DE STARTER MOTOR OEM PIAGGIO 125 MP3 IE 2010 >, X10 2012 >, YOURBAN 2012 >, X7 2009 >, BEVERLY 2010 >, VESPA GTS 2009 >/GILERA 125 NEXUS 2008 >/APRILIA 125 SR-MAX 2011 >-874803

5
P2R reference P2R reference 70555
Maker reference Maker reference 874803

SPROCKET DE RENVOI DE STARTER MOTOR OEM PIAGGIO 125 MP3 IE 2010 >, X10 2012 >, YOURBAN 2012 >, X7 2009 >, BEVERLY 2010 >, VESPA GTS 2009 >/GILERA 125 NEXUS 2008 >/APRILIA 125 SR-MAX 2011 >-874803

More information

Quantity required : 1

1A000235 - PALQUE

6
P2R reference P2R reference 65834
Maker reference Maker reference 1A000235

1A000235-PALQUE

More information

Quantity required : 1

848724 - PALQUE

6
P2R reference P2R reference 69575
Maker reference Maker reference 848724

848724 - PALQUE

More information

Quantity required : 1

SCREW CRUCIFORME (6X14) OEM PIAGGIO COMMON A LA RANGE-1A003108

7
P2R reference P2R reference 109085
Maker reference Maker reference 1A003108

SCREW CRUCIFORME (6X14) OEM PIAGGIO COMMON A LA RANGE-1A003108

More information

Quantity required : 1

SCREW CRUCIFORME (6X14) OEM PIAGGIO COMMON A LA RANGE-1A003108

7
P2R reference P2R reference 109085
Maker reference Maker reference 0083755

SCREW CRUCIFORME (6X14) OEM PIAGGIO COMMON A LA RANGE-1A003108

More information

Quantity required : 1
