Vehicle Exploded View - VESPA VESPA 50 Vespa Elettrica motociclo 2019 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

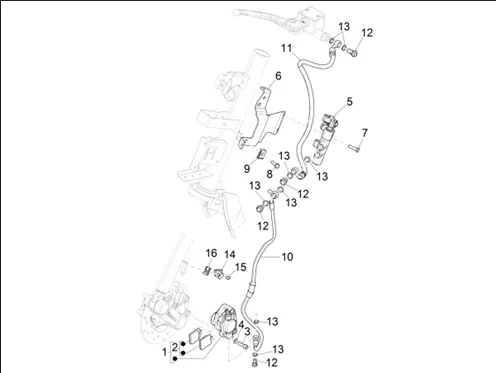

Instalation du freins - transmisisons : 05.01 TUYAUS DU FREINS - ETRIERS DE FREIN
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1175/Vespa_Elettrica_motociclo_2019_(EMEA)_05.01.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/7/4/img/72974.jpg)
1 |
BRAKE CALIPER OEM PIAGGIO 50-125 VESPA LX, VESPA S, LIBERTY, 50 ZIP/GILERA 50 DNA-CM065704 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/1/8/2/img/68182.jpg)
2 |
PLATE BRAKE OEM PIAGGIO 50 ZIP 2006 > AV, 50-125 LIBERTY 2006 > AV, 50-125 VESPA LX 2006 > AV, 50-125 PRIMAVERA 2013 > AV, 50-125 VESPA-S 2007 > AV/GILERA 50 DNA 2007 > AV (HENG-TONG)-651356 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/3/2/img/67332.jpg)
3 |
SCREW BTR (8X25) CALIPER OU SHOCK ABSORBER OEM PIAGGIO COMMON A LA RANGE-597150 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/1/img/68491.jpg)
4 |
WASHER ELASTIC COURBE (8. 4X15X0. 8) OEM PIAGGIO COMMON A TOUTE LA RANGE-709047 More informationQuantity required : 2 |
|||||||||
5 |
CM286201-BRAKING POWER DISTRIBUTOR (MEC-HYD) More informationQuantity required : 1 |
|||||||||
|
6 |
1C004233-BRACKET More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/9/7/6/img/75976.jpg)
7 |
SCREW TH (6X22) WITH BRAKE NET THREAD OEM PIAGGIO COMMON A LA RANGE-1C000291 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/7/img/65447.jpg)
8 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-018639 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
9 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
|||||||||
|
10 |
1C004264-TUBE HYDRAULIQUE More informationQuantity required : 1 |
|||||||||
|
11 |
1C004266-TUBE FLEXIBLE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/5/5/5/img/127555.jpg)
12 |
1C002059R - VIS More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/2/3/img/65723.jpg)
13 |
GASKET CUIVRE (10X16X1) BRAKE CALIPER OEM PIAGGIO COMMON A TOUTE LA RANGE-127927 More informationQuantity required : 2 |
|||||||||
|
14 |
1C004561-CLAMP More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/3/5/img/66135.jpg)
15 |
SCREW BTR HEAD BOMBEE (6X12) OEM PIAGGIO COMMON A LA RANGE-274369 More informationQuantity required : 1 |
|||||||||
|
16 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
|||||||||
