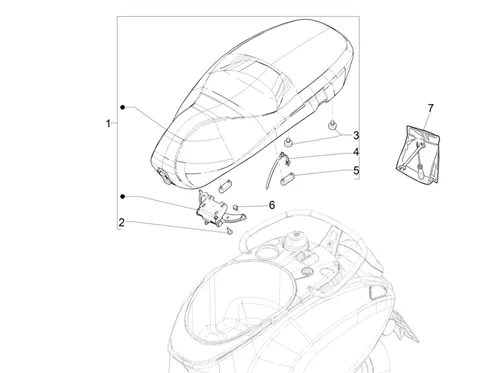

Vehicle Exploded View - VESPA VESPA PRIMAVERA 50 Vespa Elettrica 2018 (EMEA) VESPA

Châssis - parties plastiques - carrosseries : 02.39 SELLE/SIEGES
Selle/sieges
Search
1B004642000C6 - SELLE

1
P2R reference P2R reference 155323
Maker reference Maker reference 1B004642000C6

1B004642000C6-SEAT

More information

Quantity required : 1

1B004642000C1 - SELLE

1
P2R reference P2R reference 155324
Maker reference Maker reference 1B004642000C1

1B004642000C1-SEAT

More information

Quantity required : 1

1B004642000C7 - SELLE

1
P2R reference P2R reference 155325
Maker reference Maker reference 1B004642000C7

1B004642000C7-SEAT

More information

Quantity required : 1

1B004642000C3 - SELLE

1
P2R reference P2R reference 155326
Maker reference Maker reference 1B004642000C3

1B004642000C3-SEAT

More information

Quantity required : 1

1B004642000C4 - SELLE

1
P2R reference P2R reference 155327
Maker reference Maker reference 1B004642000C4

1B004642000C4-SEAT

More information

Quantity required : 1

1B004642000C5 - SELLE

1
P2R reference P2R reference 155328
Maker reference Maker reference 1B004642000C5

1B004642000C5-SEAT

More information

Quantity required : 1

SCREW TORX (6X22) HEAD BOMBEE OEM PIAGGIO COMMON A LA RANGE-CM179302

2
P2R reference P2R reference 73367
Maker reference Maker reference CM179302

SCREW TORX (6X22) HEAD BOMBEE OEM PIAGGIO COMMON A LA RANGE-CM179302

More information

Quantity required : 4

BUFFER DE SEAT OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-577492

3
P2R reference P2R reference 67157
Maker reference Maker reference 577492

BUFFER DE SEAT OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-577492

More information

Quantity required : 2

CLAMP OEM PIAGGIO COMMON A LA RANGE-298729

4
P2R reference P2R reference 66307
Maker reference Maker reference 298729

CLAMP OEM PIAGGIO COMMON A LA RANGE-298729

More information

Quantity required : 1

BUFFER SEAT OEM PIAGGIO COMMIN A LA RANGE-296456

5
P2R reference P2R reference 66292
Maker reference Maker reference 296456

BUFFER SEAT OEM PIAGGIO COMMIN A LA RANGE-296456

More information

Quantity required : 2

SCREW FLANGE TH (6X14) OEM PIAGGIO COMMON A LA RANGE-B016426

6
P2R reference P2R reference 72706
Maker reference Maker reference B016426

SCREW FLANGE TH (6X14) OEM PIAGGIO COMMON A LA RANGE-B016426

More information

Quantity required : 4

1C000590 - TROUSSE OUTILS

7
P2R reference P2R reference 76021
Maker reference Maker reference 1C000590

1C000590-TROUSSE OUTILS

More information

Quantity required : 1
