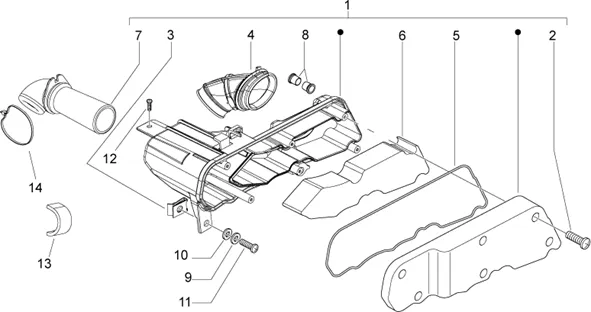

Cadre : 28.18 CORPS FILTRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1067/Variant_Sport_50_2T_2012_(EMEA)_28.18.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/2/7/img/72627.jpg)
1 |
HOUSING AIR FILTER SCOOT OEM PIAGGIO 50 TYPHOON 2010 >, FLY 2010 >, ZIP 2009 >/APRILIA 50 SR-MOTARD 2012 >, SPORT-CITY ONE 2008 > 2011 (BOITER)-B013227 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/5/img/66025.jpg)
2 |
SCREW AUTOTARAUDEUSE (3X20) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-258146 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
3 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/4/3/img/66743.jpg)
4 |
SLEEVE AIR FILTER SCOOT OEM PIAGGIO 50 TYPHOON, ZIP, LIBERTY, FLY, VESPA LX, PRIMAVERA, VESPA SPRINT 2T/GILERA 50 RUNNER, STALKER 2T/APRILIA 50 SR H2O, SR SUPER MOTARD 2T-487592 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/4/6/img/66746.jpg)
5 |
GASKET OF HOUSING AIR FILTER OEM PIAGGIO COMMON A LA RANGE 50 CC 2T 2004 >-487718 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/7/0/7/5/img/157075.jpg)
6 |
ELEMENT/MOUSSE AIR FILTER (PREMIUM) SCOOT OEM PIAGGIO 50 ZIP 2T 2000 >, VESPA LX 2T 2005 >, LYBERTY 2T 2005 >, NRG 2005 >/GILERA 50 DNA, RUNNER 2005 >, STALKER 2001 >/APRILIA 50 SR 2012 >-1A0122830P More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/3/5/img/69135.jpg)
7 |
SLEEVE ASPIRATION DE AIR FILTER OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 2T-840159 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/8/8/img/68888.jpg)
8 |
BUSH EN T (D5) MOLETEE CENTRAGE BOX A AIR OEM PIAGGIO COMMON A LA RANGE-830056 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
9 |
WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/5/img/65345.jpg)
10 |
WASHER EVENTAIL (6, 6X11X0) OEM PIAGGO COMMON A LA RANGE-012533 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/9/2/img/65392.jpg)
11 |
SCREW CRUCIFORME (6X20) OEM PIAGGIO COMMON A LA RANGE-015759 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/8/img/65448.jpg)
12 |
SCREW CRUCIFORME (6X50) OEM PIAGGIO COMMON A TOUTE LA RANGE-018640 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/3/0/img/67230.jpg)
13 |
CLAMP OEM PIAGGIO COMMON A LA RANGE-581767 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
14 |
HOSE CLAMP NYLON TYPE RILSAN 4, 8X270MM OEM PIAGGIO COMMON A LA RANGE-257134 More informationQuantity required : 1 |
