Vehicle Exploded View - DERBI VARIANT REVOLUTION 50 VARIANT REVOLUTION 2003 E1
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

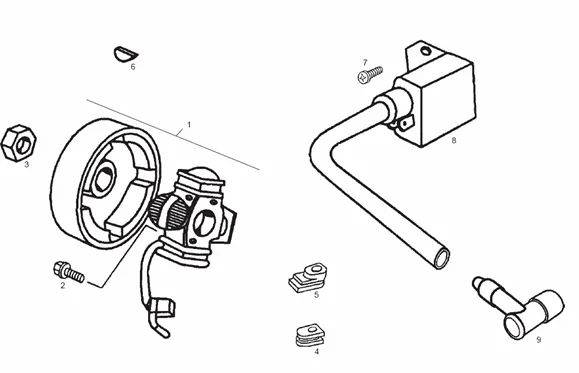

Tables : 20 VOLANT MAGNÉTIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1064/VARIANT_REVOLUTION_2003_E1_20.png)
1 |
00F03306011 - CTO.VOL.MAG.VARIANT (LEONELLI) More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/7/img/65447.jpg)
2 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-018639 More informationQuantity required : 1 |
||||||
|
3 |
|
||||||
|
3 |
00F03303221-NUT SPROCKET TRANSMISSION More informationQuantity required : 1 |
||||||
|
4 |
00F03320281 - CAOUTCHUC PROTEC. FILS More informationQuantity required : 1 |
||||||
|
5 |
00F03321281 - CAOUTCHUC PROTEC. FILS More informationQuantity required : 1 |
||||||
|
6 |
00G03300231-CLAVETTE VOLANT ELECTRONIC More informationQuantity required : 1 |
||||||
|
7 |
|
||||||
|
8 |
00F03306171 - CTO.CONV.ELEC.VRNT (LEONELLI) More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/0/8/3/img/64083.jpg)
9 |
00G03301271-MANIFOLD DE SPARK PLUG More informationQuantity required : 1 |
